Heated Oxygen Sensor: Components: Illustration

Download the full database via torrent (~1.1 TB)

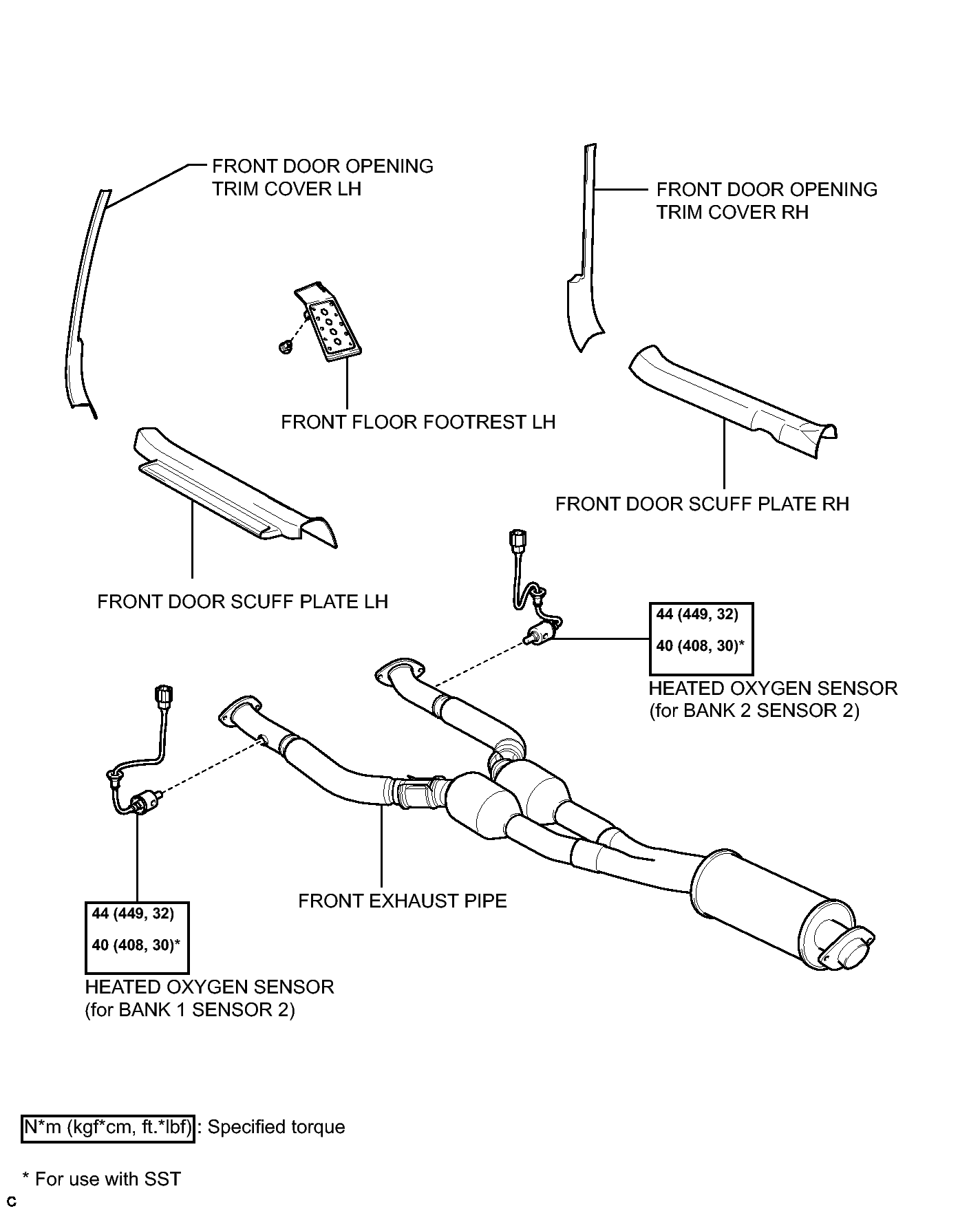

Fig 1: Identifying Heated Oxygen Sensor Replacement Components With Torque Specifications
GTY149058Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
