Vehicle Identification And Serial Numbers

Download the full database via torrent (~1.1 TB)

VEHICLE IDENTIFICATION NUMBER
1. The vehicle identification number is stamped on the vehicle body and on the certification label, as shown in the illustration.

  Fig 1: Identifying Vehicle Identification Number And Certification Label
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  A

  Vehicle Identification Number

  B

  Certification Label
ENGINE SERIAL NUMBER AND TRANSMISSION SERIAL NUMBER

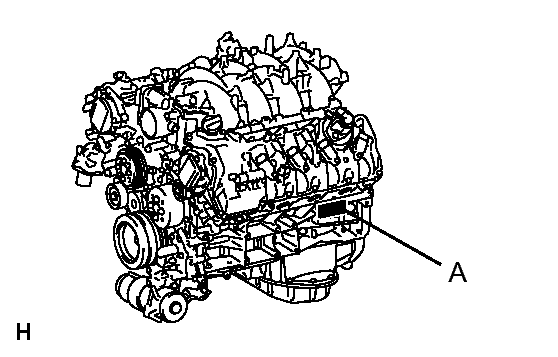

1. The engine serial number is stamped on the cylinder block of the engine as shown in the illustration.

  Fig 2: Identifying Engine Serial Number
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  A

  2UR-GSE Engine Serial Number
2. The transmission serial number is stamped on the case as shown in the illustration.

  Fig 3: Identifying Transmission Serial Number
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  A

  AA80E Transmission Serial Number
