Camshaft Position Sensor: Components: Illustration

Download the full database via torrent (~1.1 TB)

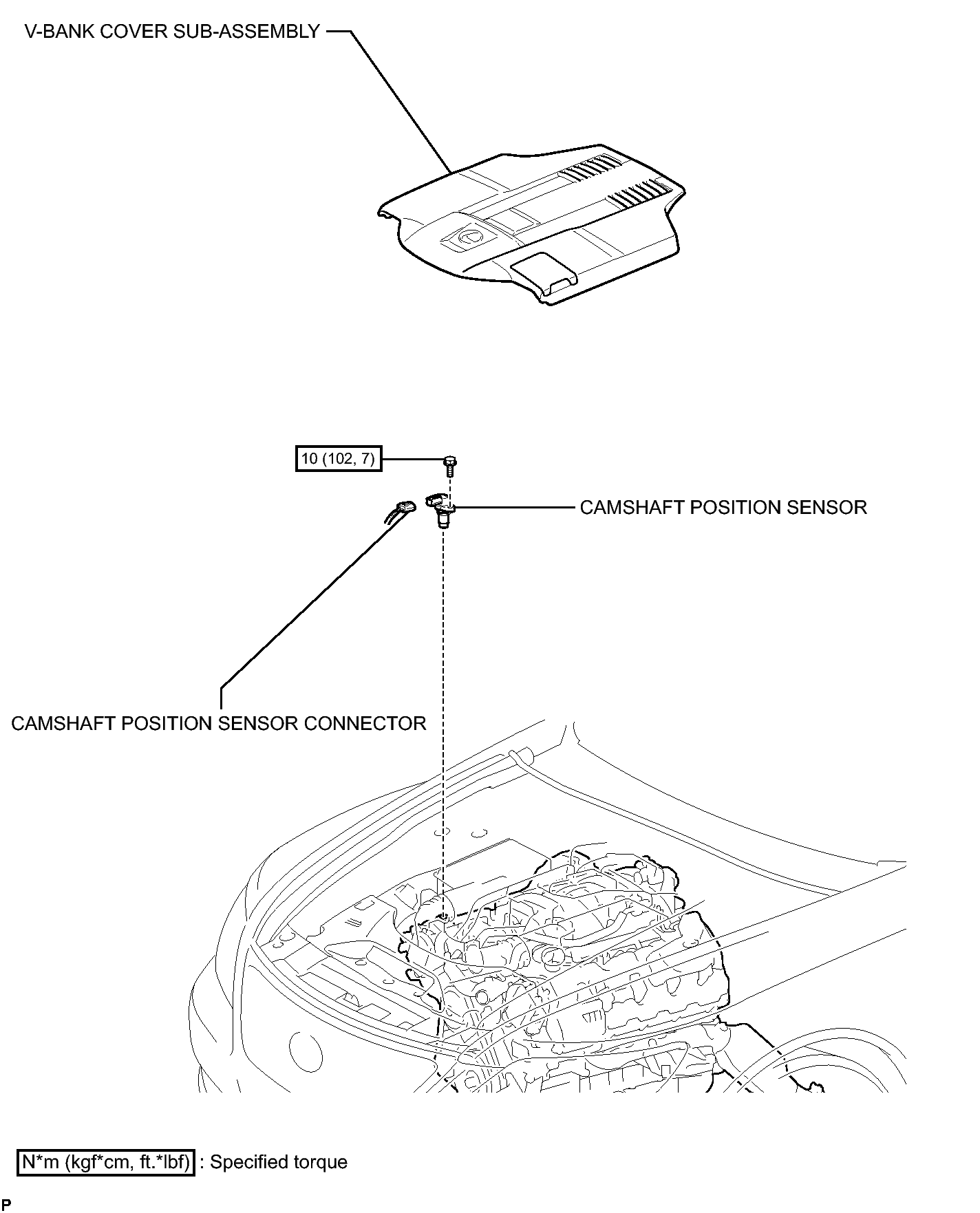

Fig 1: Identifying Camshaft Position Sensor Replacement Components With Torque Specifications
GTY147894Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
