Engine Coolant Temperature Sensor: Components: Illustration

Download the full database via torrent (~1.1 TB)

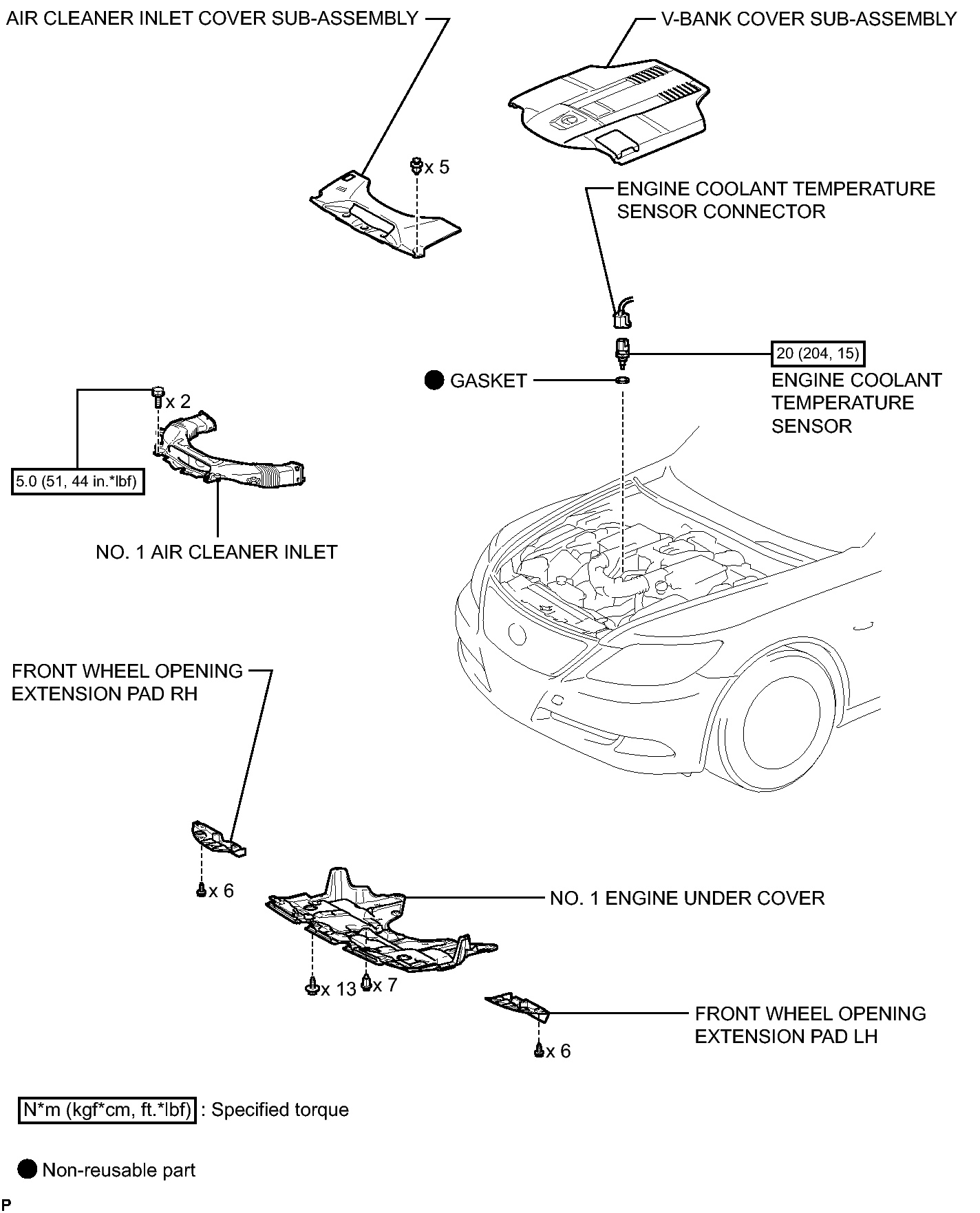

Fig 1: Identifying Engine Coolant Temperature Sensor Replacement Components With Torque Specifications
GTY261101Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
