Components [09/2014 - ]
Download the full database via torrent (~1.1 TB)

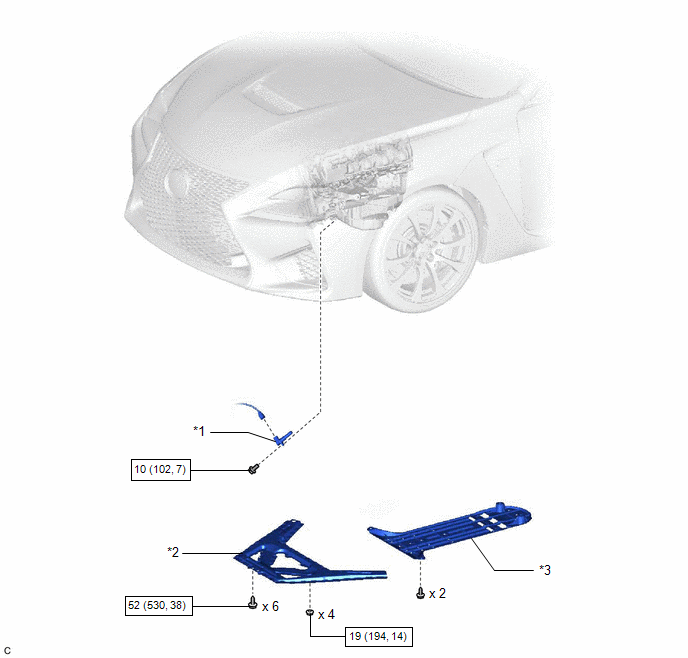

Fig 1: Crankshaft Position Sensor Replacement Components With Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1
CRANKSHAFT POSITION SENSOR
*2
FRONT SUSPENSION MEMBER BRACE SUB-ASSEMBLY
*3
NO. 2 ENGINE UNDER COVER
-
-
N.m (kgf/cm, ft.lbf): Specified torque
-
-
