Accelerator Pedal: Notes

Download the full database via torrent (~1.1 TB)

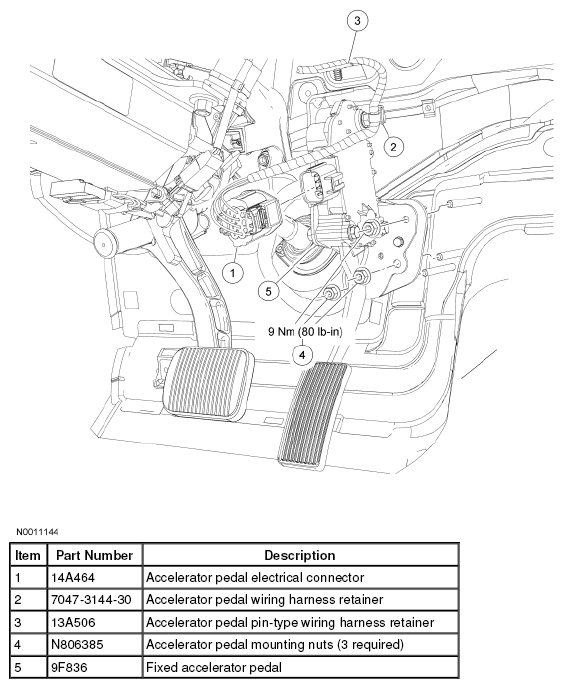

Fig 1: Accelerator Pedal Replacement Components - Fixed Pedal With Torque Specifications
G04691899Courtesy of FORD MOTOR CO.

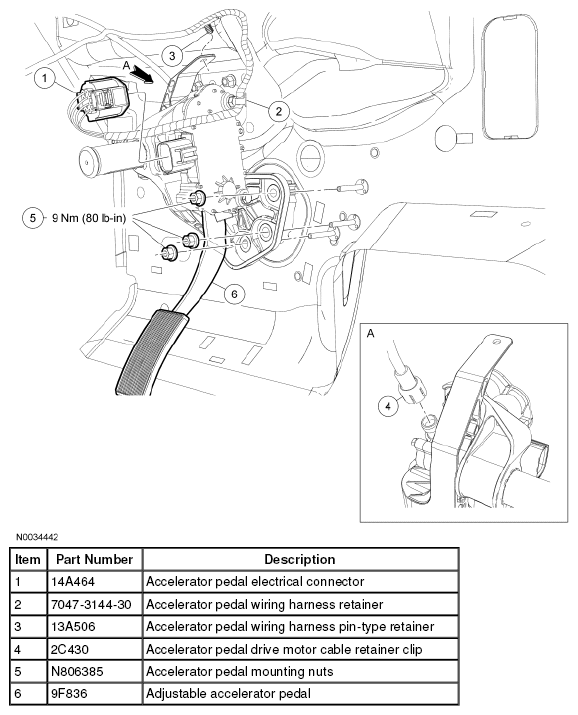

Fig 2: Accelerator Pedal Replacement Components - Adjustable Pedal With Torque Specifications
G04691900Courtesy of FORD MOTOR CO.
