Wheel Alignment: MAZDA: Adjustment: Camber: Pickup

To adjust, change shims between upper arm shaft and support bracket until specifications for camber are within limits.

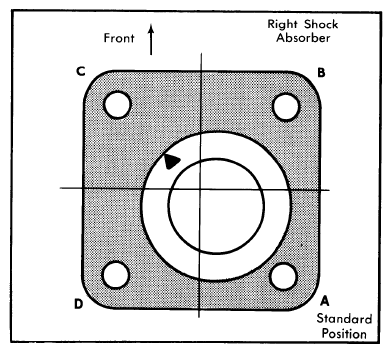

Fig 1: RX7 & 626 Caster and Camber Adjusting Pad (Position "C" Shown)

Courtesy of MAZDA MOTORS CORP.
