Spray Pattern

Download the full database via torrent (~1.1 TB)

Build up pressure in the injector tester to just below injection starting pressure. Quickly lower handle on tester and observe fuel spray pattern. Fuel should be uniformly atomized and should form a narrow cone projecting straight out of the end of the nozzle. See Fig 1 .

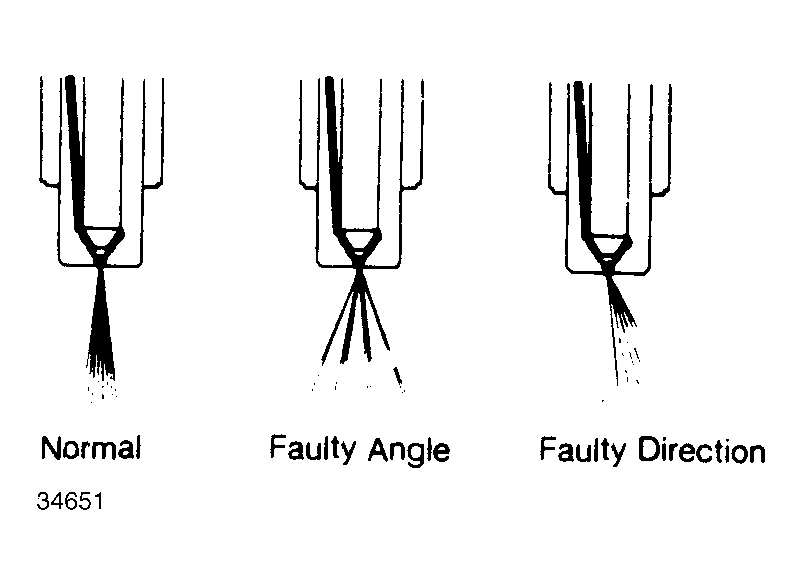

Fig 1: Injector Spray Pattern Injector must not drip when needle valve is closed.
