CONTROL UNITS LOCATION
Component
Location

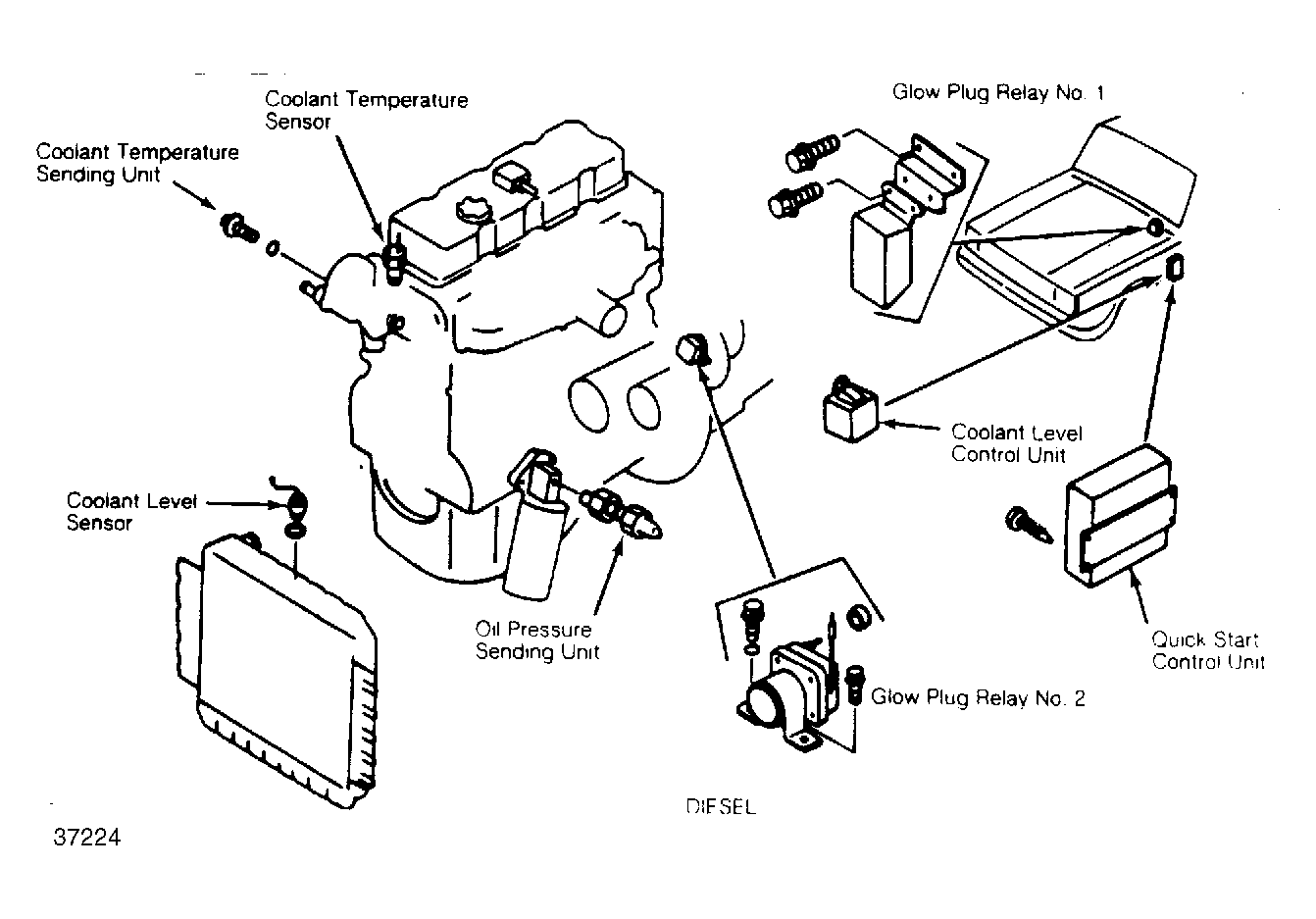

Coolant Level Control Unit
On upper left kick panel. See
Figure
&
Figure
.

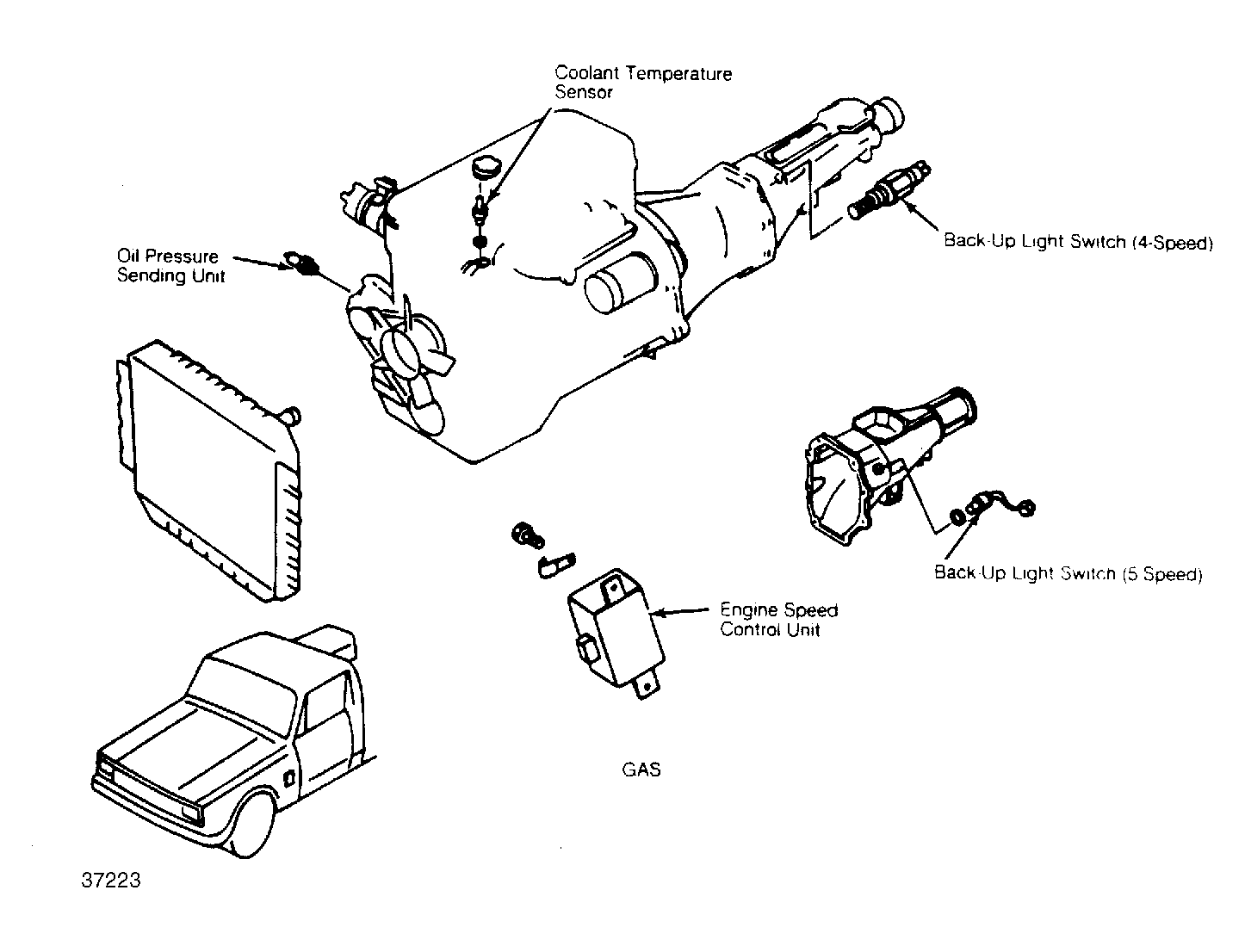

Engine Speed Control Unit (Gas)
On left kick panel. See
Figure
&
Figure
.
Quick Start Control Unit (Diesel)
On left kick panel. See
Figure
&
Figure
.
