Glow Plug

Download the full database via torrent (~1.1 TB)

Disconnect glow plug cord and check for continuity between positive terminal of glow plug and cylinder head. If no continuity, replace glow plug, connector nut and connector.

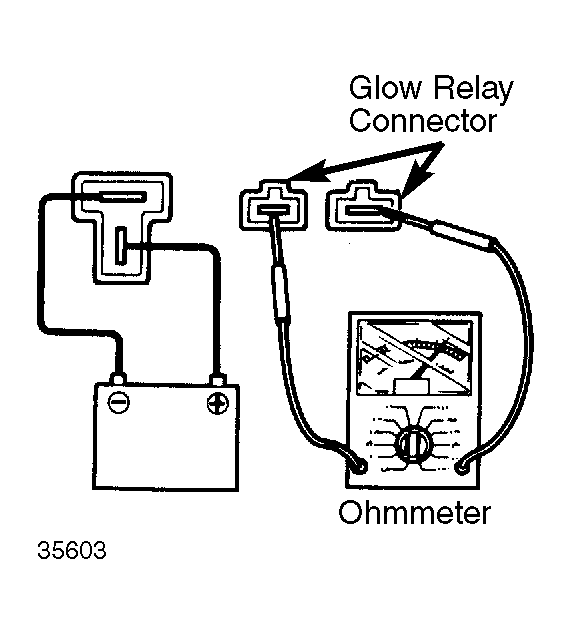

Fig 1: Testing Glow Plug Relay
G35603
