Control Units

Download the full database via torrent (~1.1 TB)
CONTROL UNITS LOCATION

Component Location
A/C Control Unit Below right side of instrument panel.

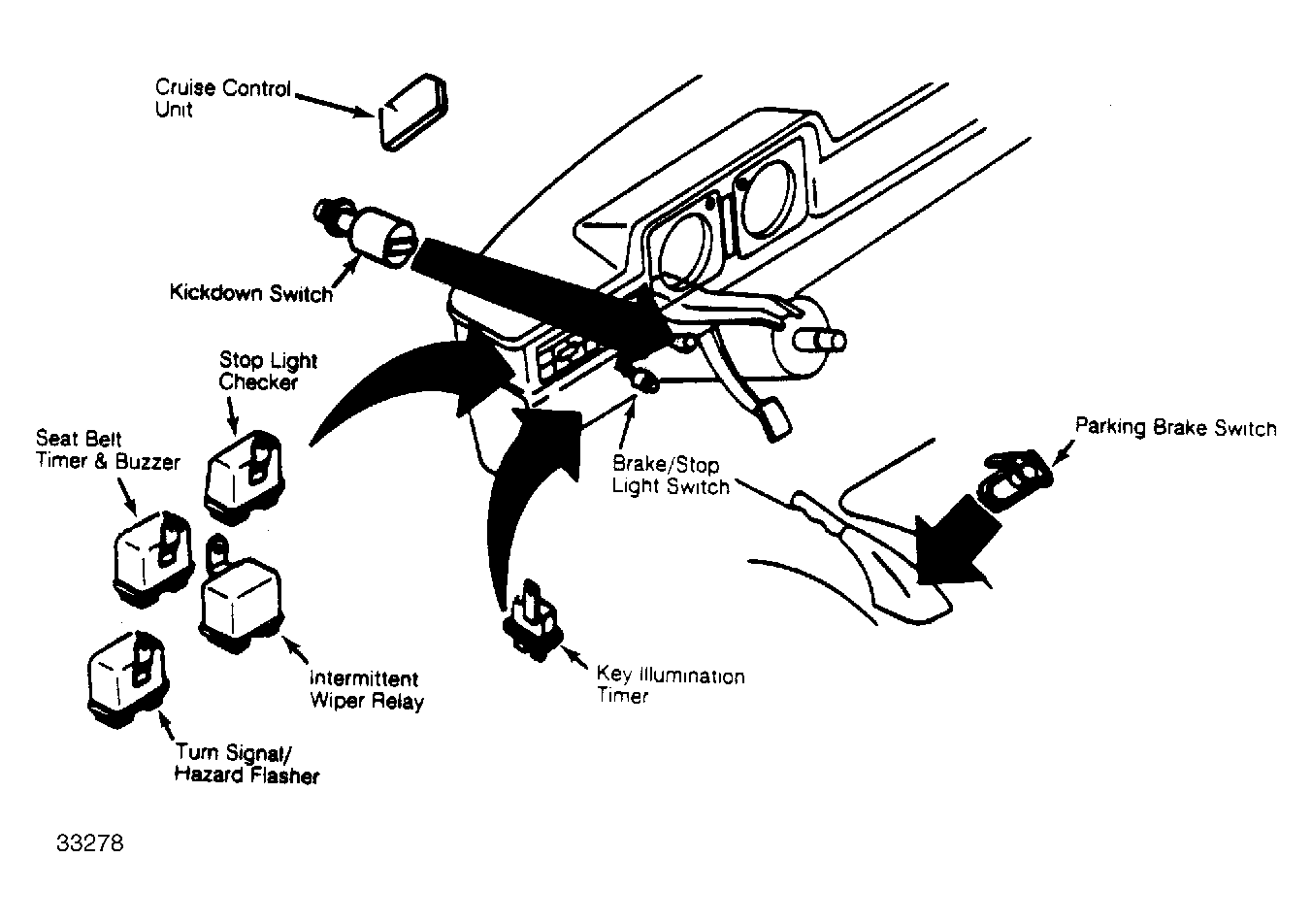

Cruise Control Unit Under left side of instrument panel. See Figure .
Electronic Control Unit (ECU) Below right side of instrument panel.
Engine RPM Control Unit On left kick panel.
