Ignition System: Testing: Coil

Download the full database via torrent (~1.1 TB)

Disconnect negative battery cable. Connect ohmmeter as shown. See Fig 1. Check coil resistance. Resistance should be .2-1.0 ohms. Replace coil as necessary.

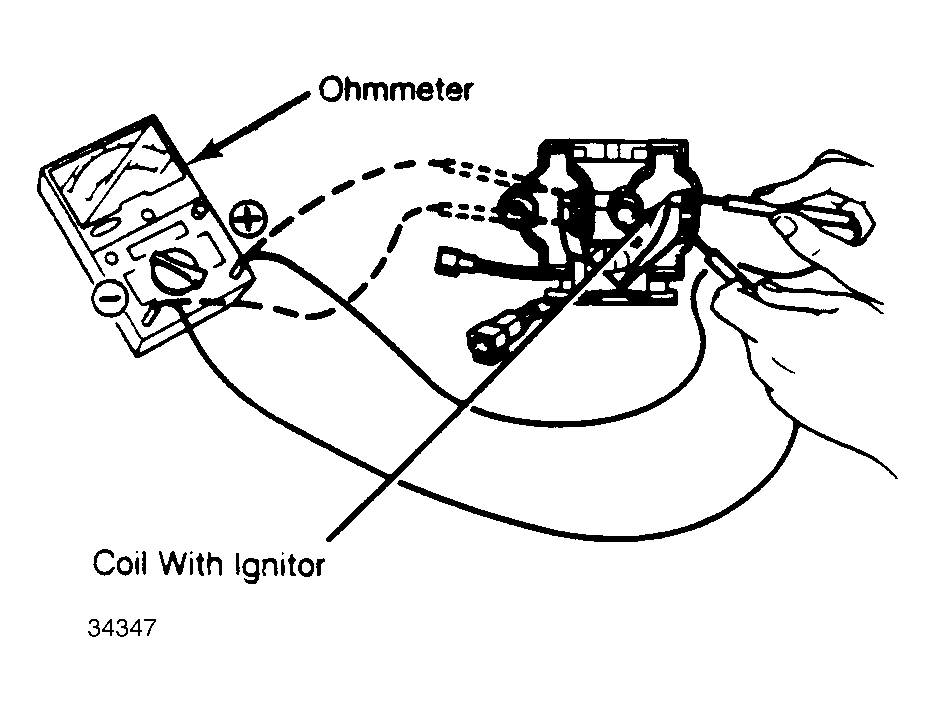

Fig 1: Coil Connector Locations
