RX-7 Base, Automatic
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Engine Control System
>>
Testing
>>
Terminal Location Of Control Unit
Terminal Location Of Control Unit
Download the full database via torrent (~1.1 TB)

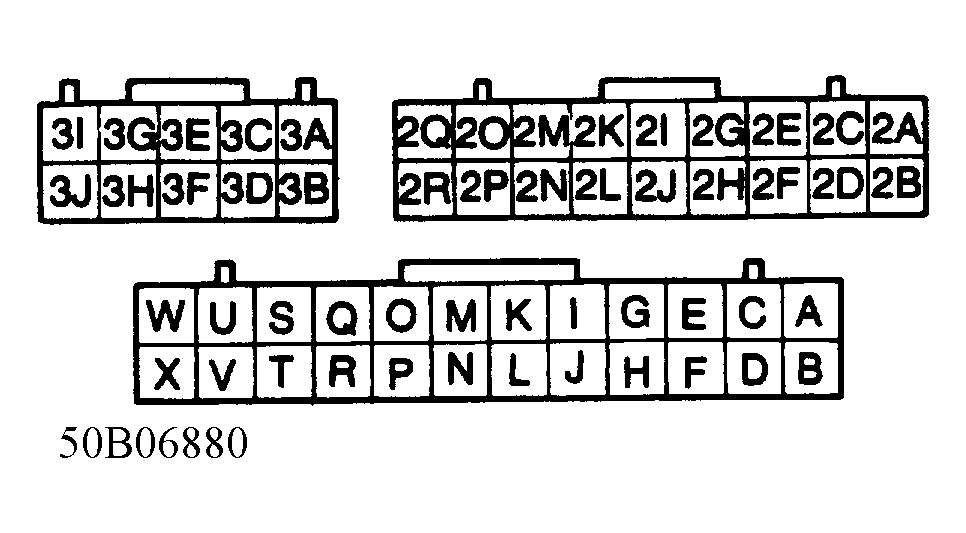

Fig 1: Terminal Location of Control Unit Unit is Located Under Right Side of Dashboard
DIGITAL CODE CHECKER GREEN LAMP FUNCTIONS
Green Lamp Mode
Air-Fuel Ratio
On
Too Rich
Off
Too Lean
Flashing
Best
