Code 12: Throttle Sensor
Download the full database via torrent (~1.1 TB)

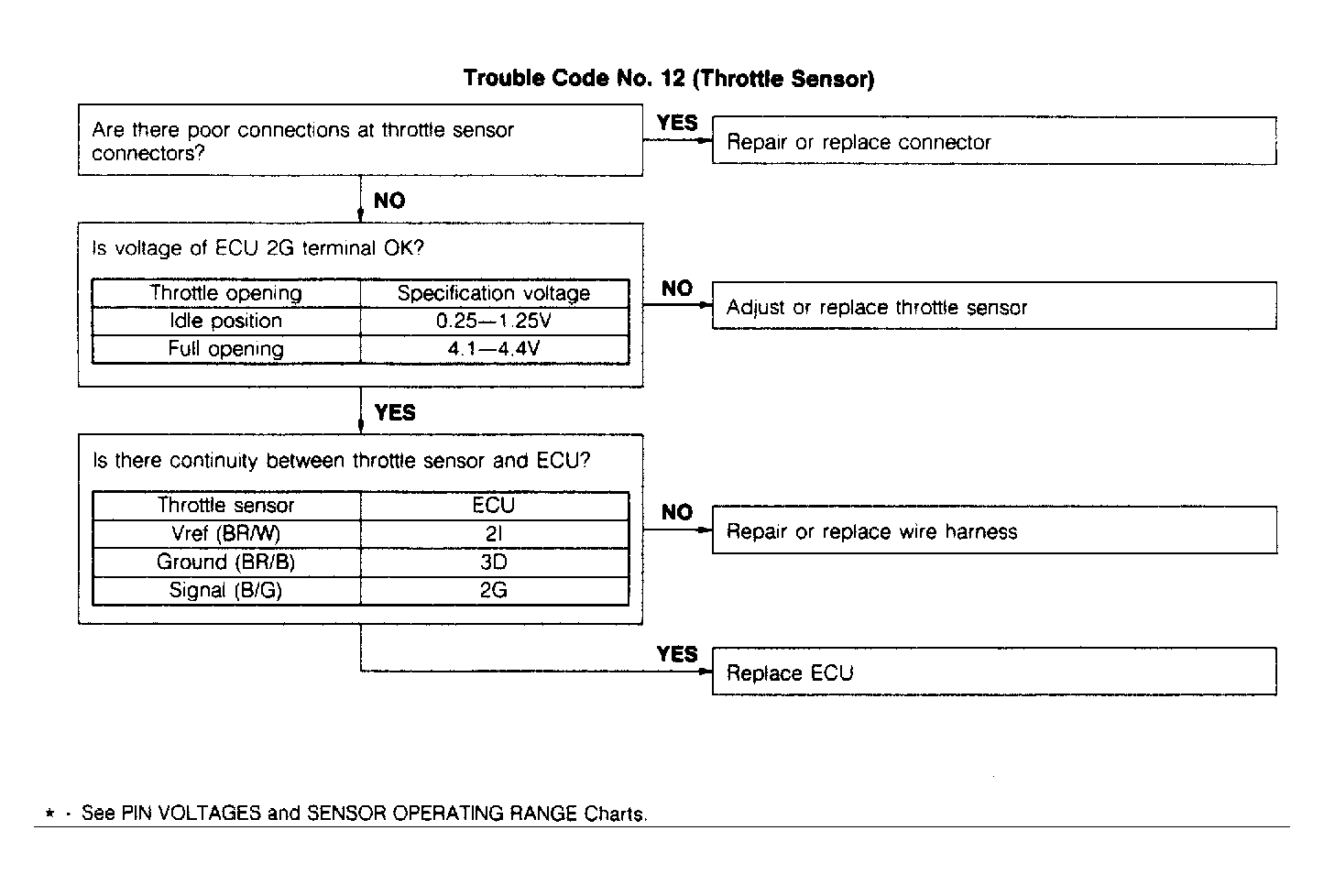

Fig 1: Code 12: Throttle Sensor Flow Chart
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
