ISC Valve

Download the full database via torrent (~1.1 TB)

Disconnect ISC valve electrical connector. Connect ohmmeter to ISC valve 2-wire connector. Measure resistance. See ISC RESISTANCE SPECIFICATIONS table. If resistance is not within specification, replace ISC valve.

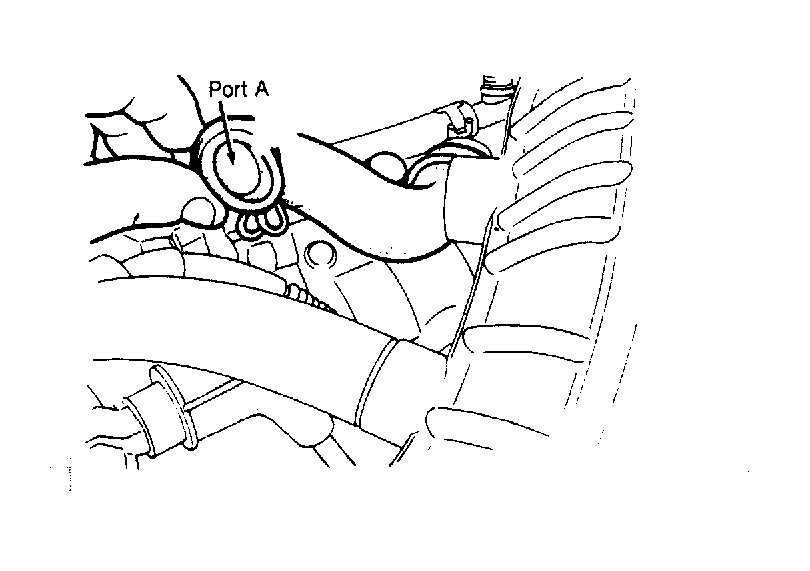

Fig 1: Testing Air Valve (929)

Courtesy of MAZDA MOTORS CORP.
