Ignition Coil Resistance

Download the full database via torrent (~1.1 TB)
  1. Remove primary and secondary leads from ignition coil. Using ohmmeter, check primary resistance between positive and negative terminals of coil. See Fig 1 and Fig 2 . Resistance should be as specified in IGNITION COIL RESISTANCE table. If resistance is not as specified, replace ignition coil.
  2. Check secondary resistance between (positive) terminal and coil tower. See Fig 1 and Fig 2 . See IGNITION COIL RESISTANCE table. If resistance is not within specification, replace coil.

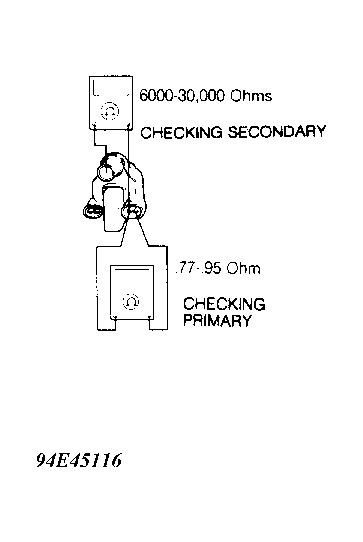

Fig 1: Checking Coil (4-Cyl.)
G94E45116Courtesy of MAZDA MOTOR CORP.

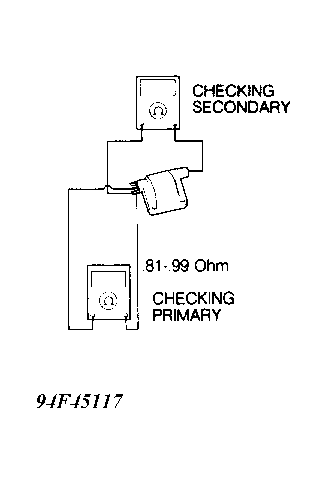

Fig 2: Checking Coil (V6)
G94F45117Courtesy of MAZDA MOTOR CORP.
IGNITION COIL RESISTANCE

Application Primary Secondary
2.6L .77-.95 6000-30,000
3.0L .72-.88 10,000-30,000
