Code 6: Vehicle Speedometer Sensor

Download the full database via torrent (~1.1 TB)

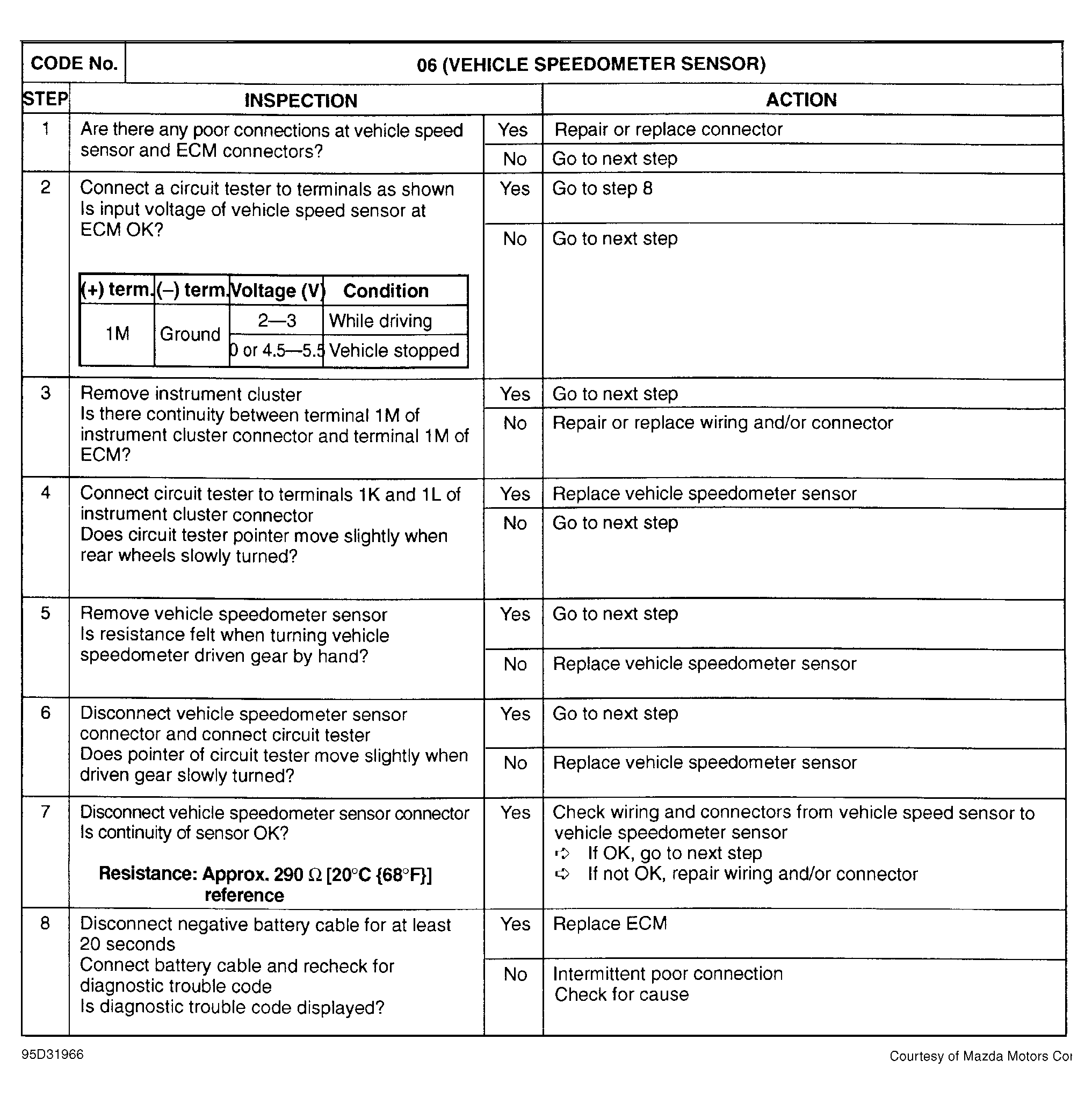

Fig 1: Trouble Code No. 6 Vehicle Speedometer Sensor
G95D31966

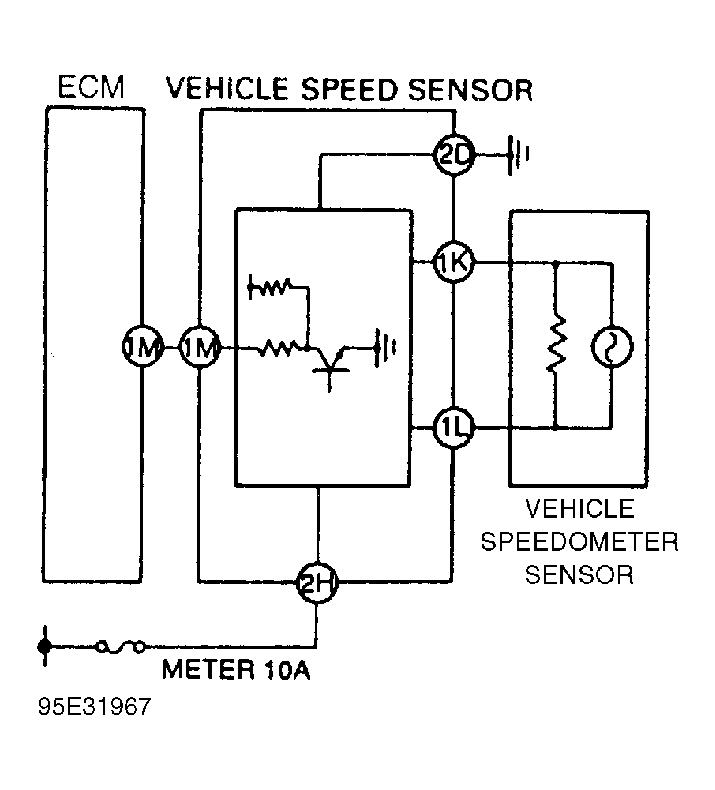

Fig 2: Trouble Code No. 6 Vehicle Speedometer Sensor Circuit Diagram
G95E31967
