Trouble Code Identification: Notes
Download the full database via torrent (~1.1 TB)

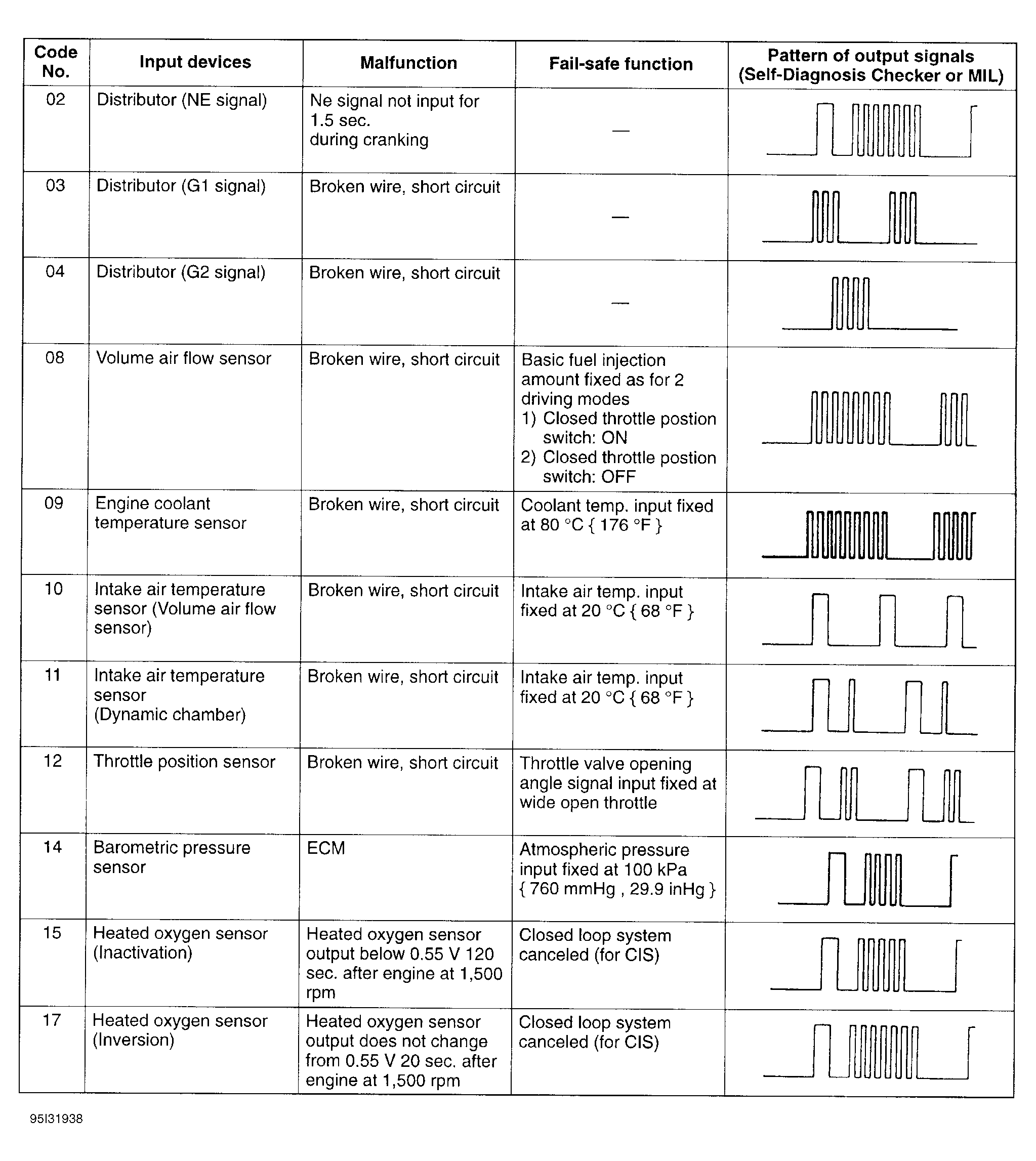

Fig 1: Trouble Code Identification Chart (1 Of 2)
Courtesy of MAZDA MOTORS CORP.

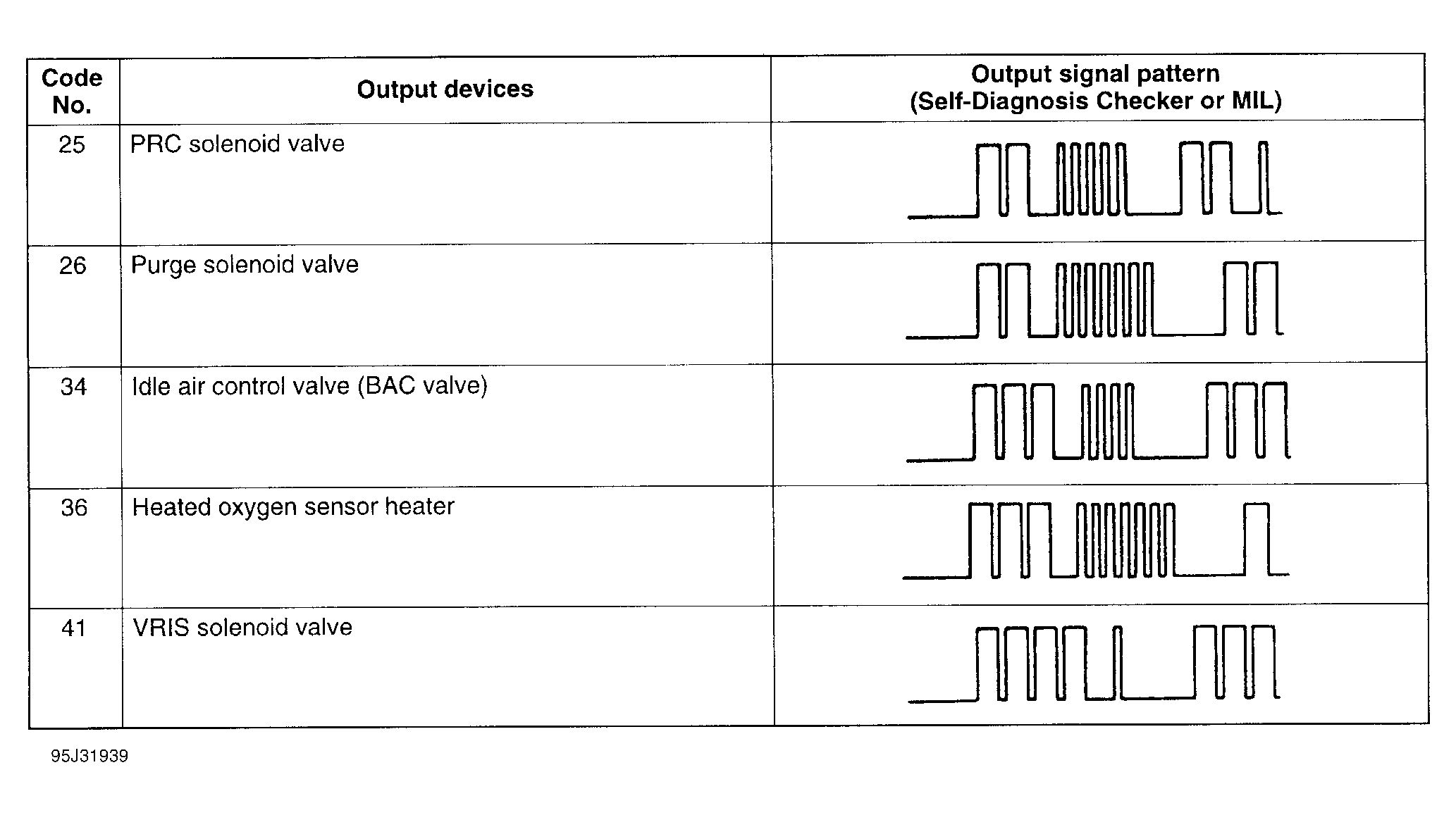

Fig 2: Trouble Code Identification Chart (2 Of 2)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
