Brush Spring

Measure the force of the brush spring using a spring pressure gauge. Read the spring pressure gauge at the brush tip projection of 0.079" (2 mm). See Fig 1. Replace as necessary. See GENERATOR SPECIFICATIONS .

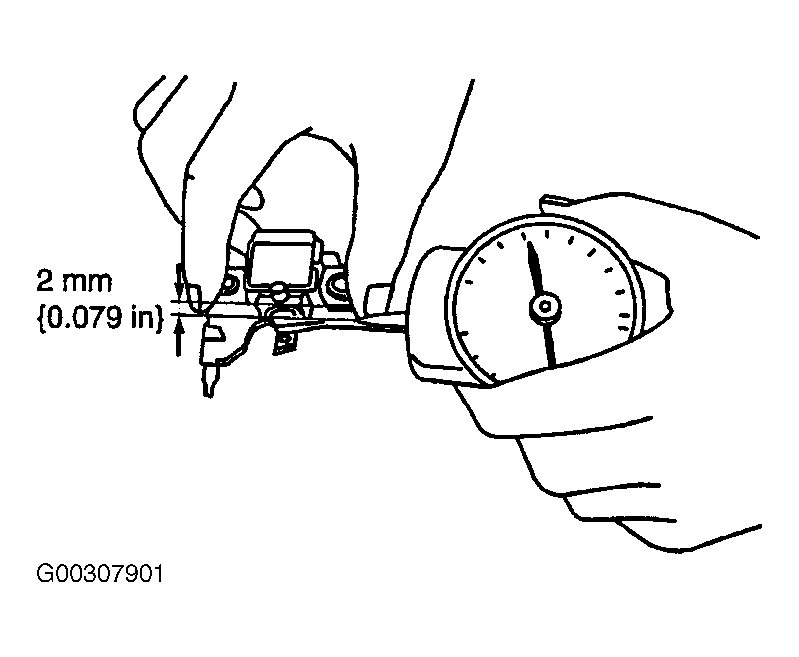

Fig 1: Measuring Generator Brush Spring Tension

Courtesy of MAZDA MOTORS CORP.
