Home >> Mazda >> 2003 >> 6 L4-2.3L >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Engine >> System Diagram

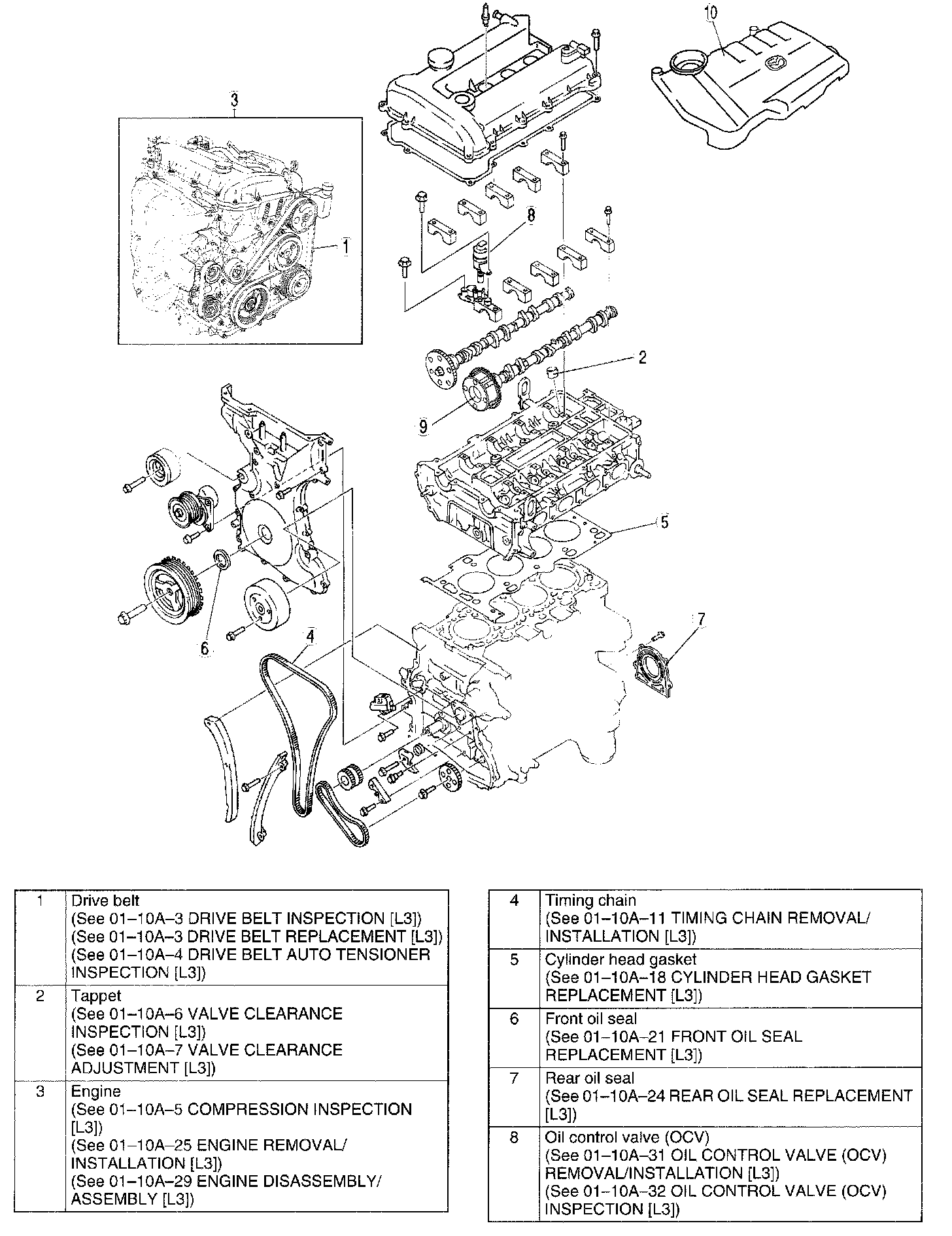

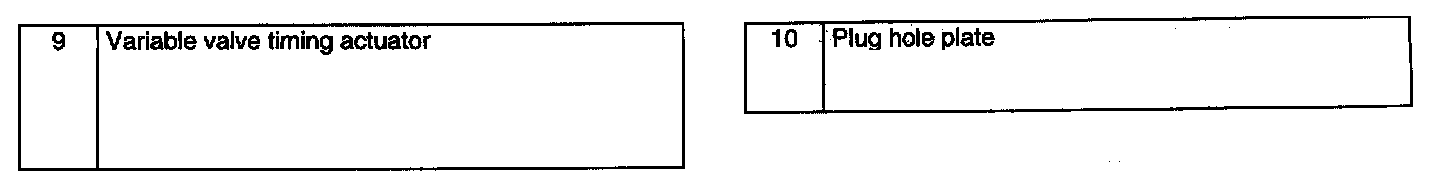

System Diagram
