System Specifications

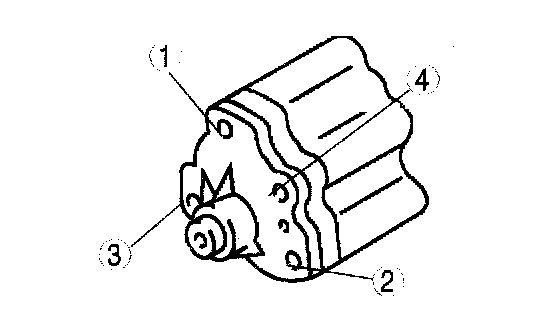

Tighten the oil pump bolts in two steps in the order indicated in the figure.
Tightening torque:
8 - 10 Nm (81.6 - 101.9 kgf-cm, 70.9 - 88.4 inch lbs.)
20 - 25 Nm (2.1 - 2.5 kgf-cm, 15.2 - 18.4 ft. lbs.)
Tighten the oil pump bolts in two steps in the order indicated in the figure.
Tightening torque:
8 - 10 Nm (81.6 - 101.9 kgf-cm, 70.9 - 88.4 inch lbs.)
20 - 25 Nm (2.1 - 2.5 kgf-cm, 15.2 - 18.4 ft. lbs.)
