Home >> Mazda >> 2003 >> 6 L4-2.3L >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> System Specifications >> Technical Data

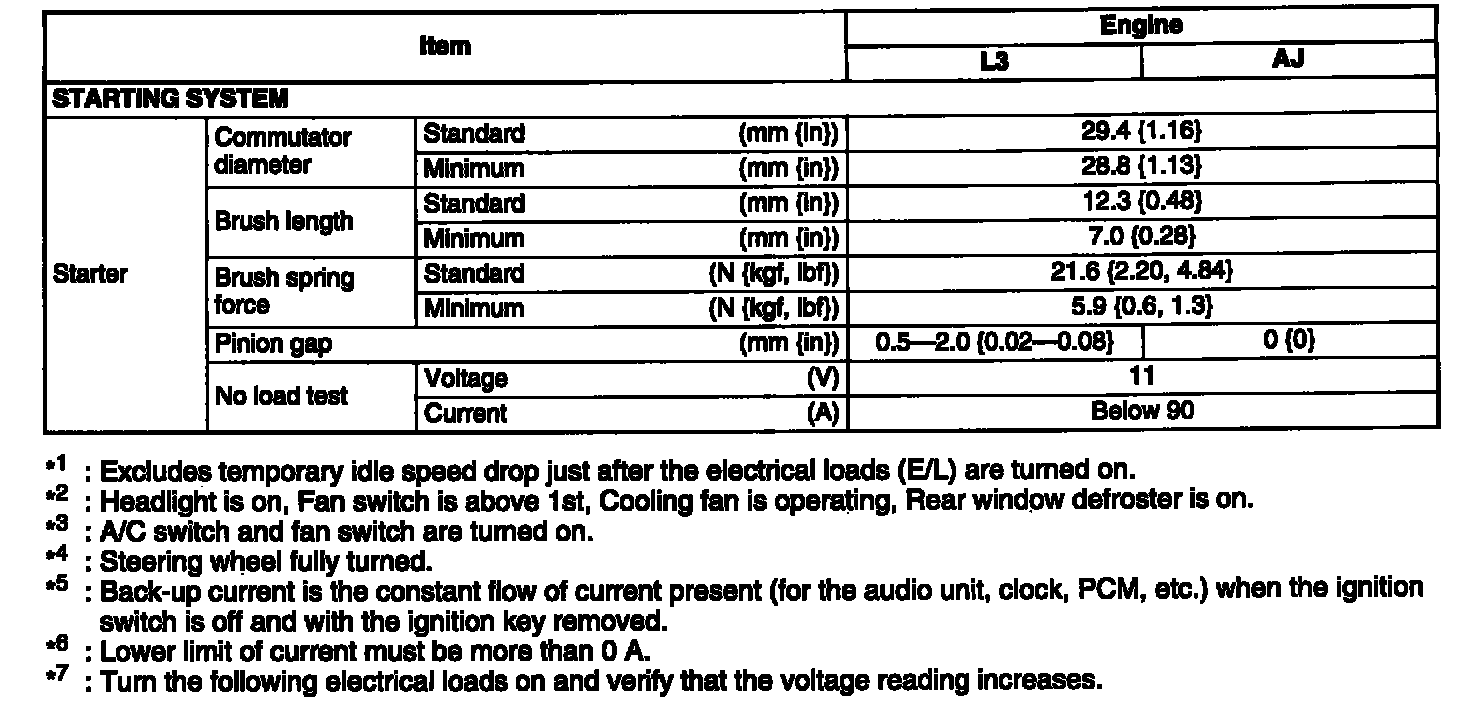

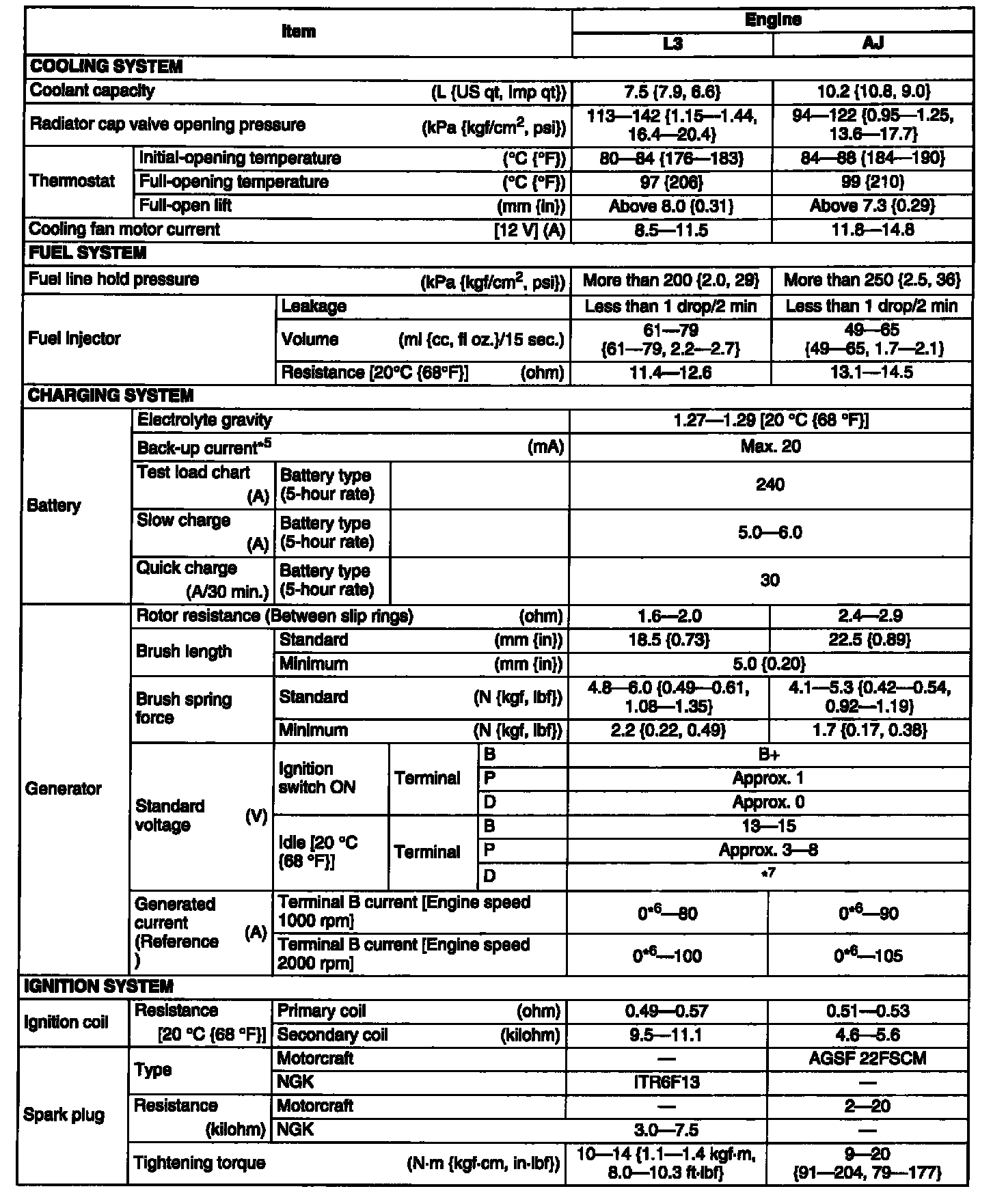

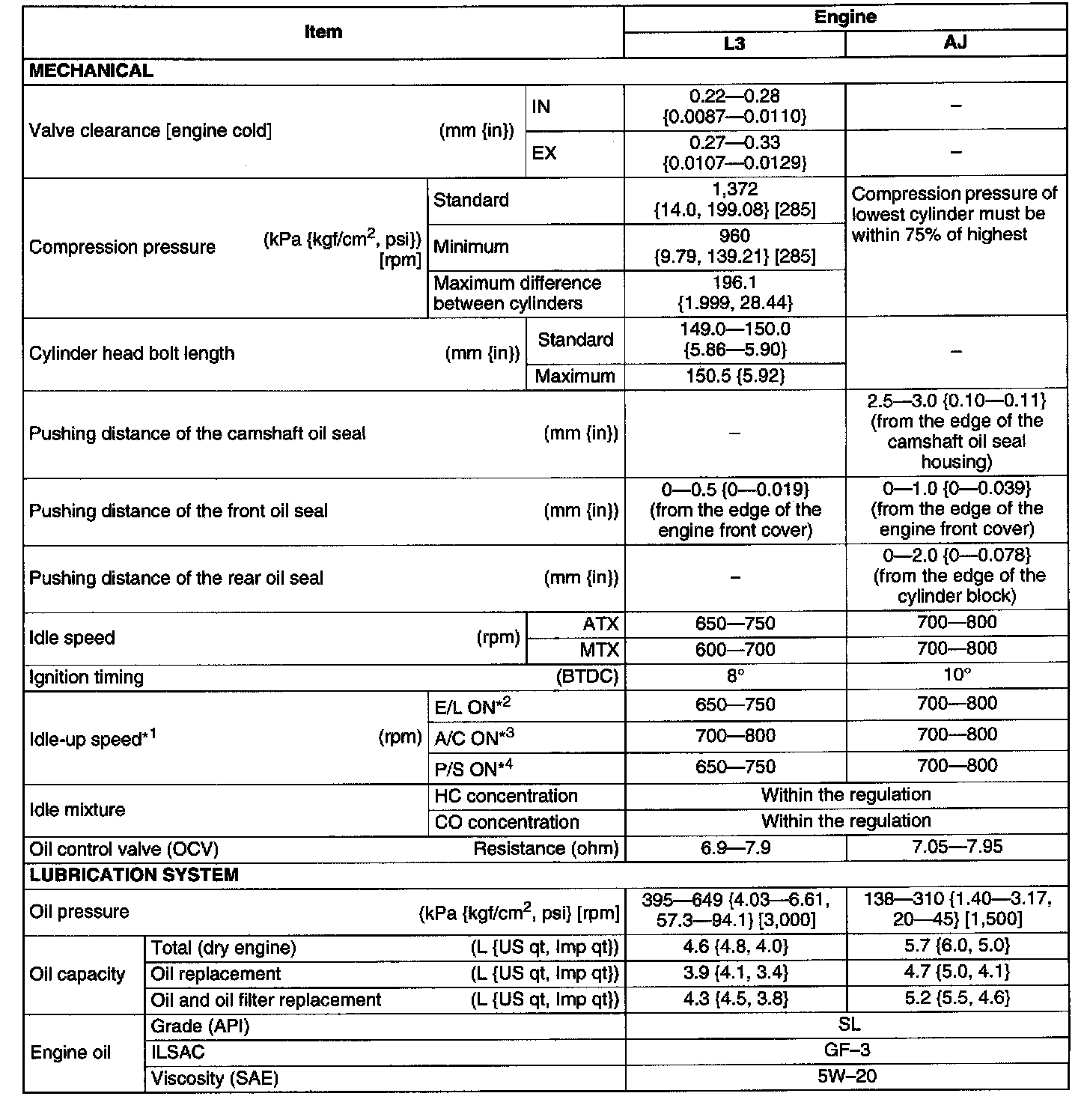

Technical Data
