Keyless Control Module Disassembly/Assembly: Notes

Download the full database via torrent (~1.1 TB)
  1. Disassemble in the order indicated in the figure below.
    Fig 1: Keyless Control Module Component Table
    G01887506Courtesy of MAZDA MOTORS CORP.
  2. Assemble in the reverse order of disassembly.

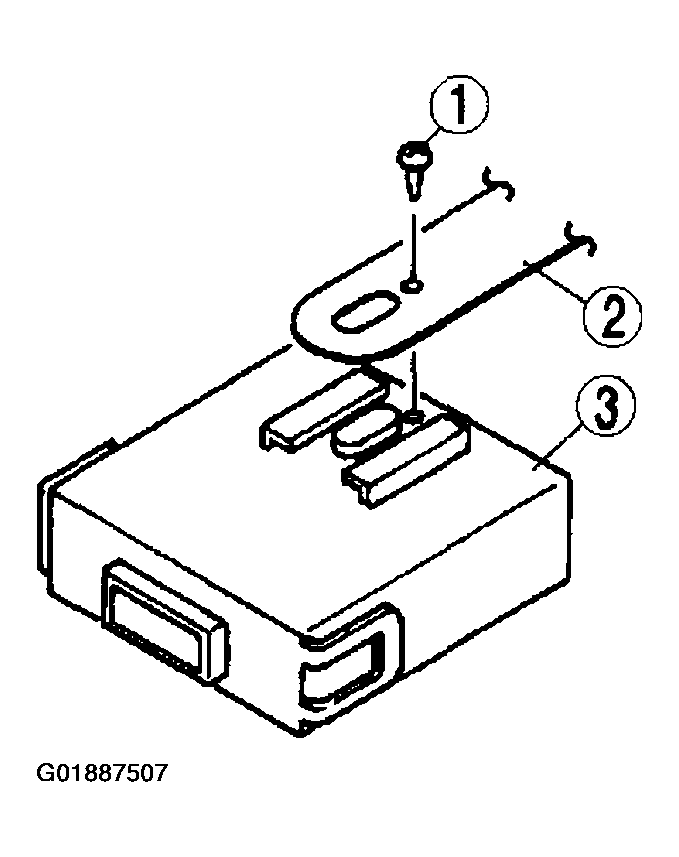

    Fig 2: Identifying Keyless Control Module Component
    G01887507Courtesy of MAZDA MOTORS CORP.
