Control System Diagram
>>
California Emission Regulation Applicable Model
California Emission Regulation Applicable Model
Download the full database via torrent (~1.1 TB)

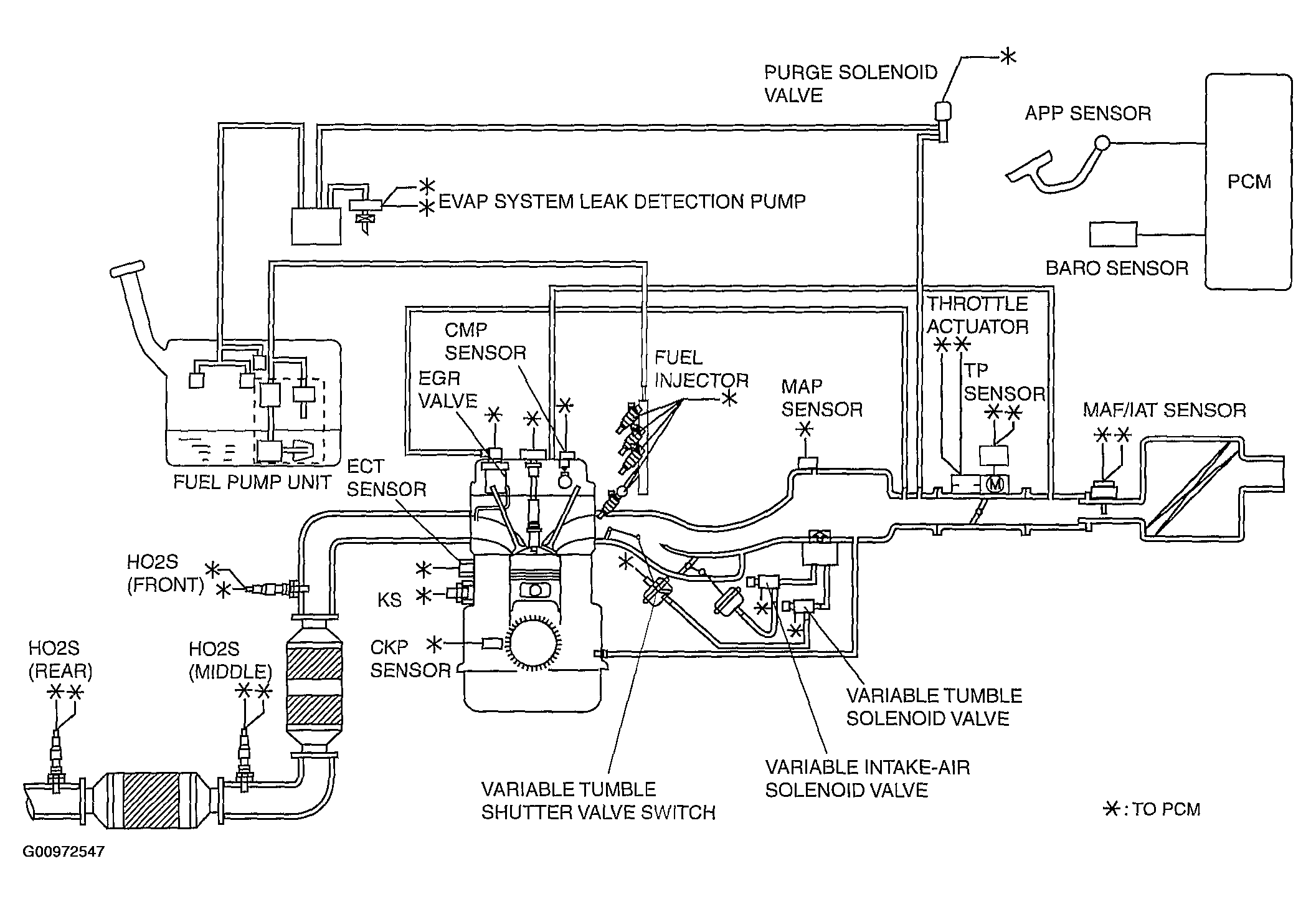

Fig 1: Control System Diagram-California Emission Regulation Applicable Model
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
