Home >> Mazda >> 2004 >> 3 i, Automatic >> Repair and Diagnosis >> Engine Performance >> System >> Engine Control System >> Engine Coolant Temperature (ECT) Sensor Inspection >> Standard

Engine Coolant Temperature (ECT) Sensor Inspection: Standard

Download the full database via torrent (~1.1 TB)

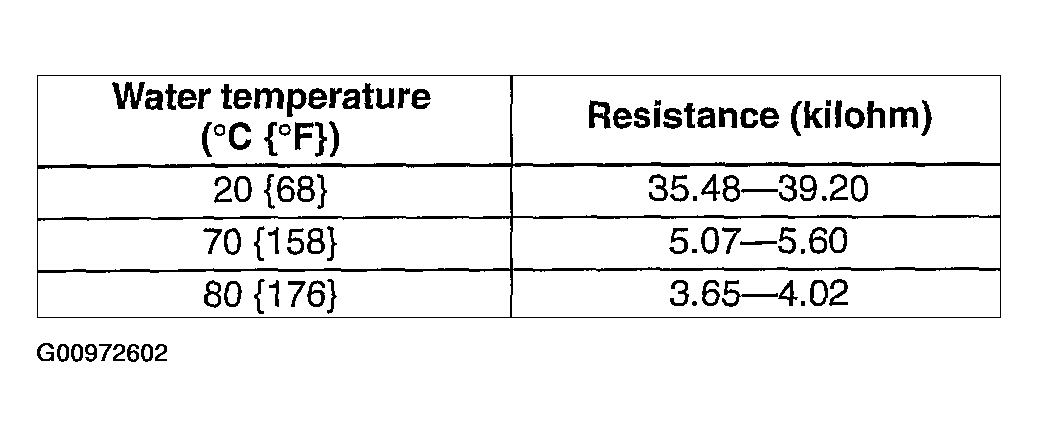

Fig 1: Engine Coolant Temperature Sensor Resistance Specification Table
G00972602Courtesy of MAZDA MOTORS CORP.
