Without Using the SST

Download the full database via torrent (~1.1 TB)

NOTE:

The PCM terminal voltage can vary with the conditions when measuring and changes due to aged deterioration on the vehicle, causing false diagnosis. Therefore determine comprehensively where the malfunction occurs among the input systems, output systems, and the PCM.

Fig 1: PCM Inspection & Test Index (1 Of 8)

G00972554

Courtesy of MAZDA MOTORS CORP.

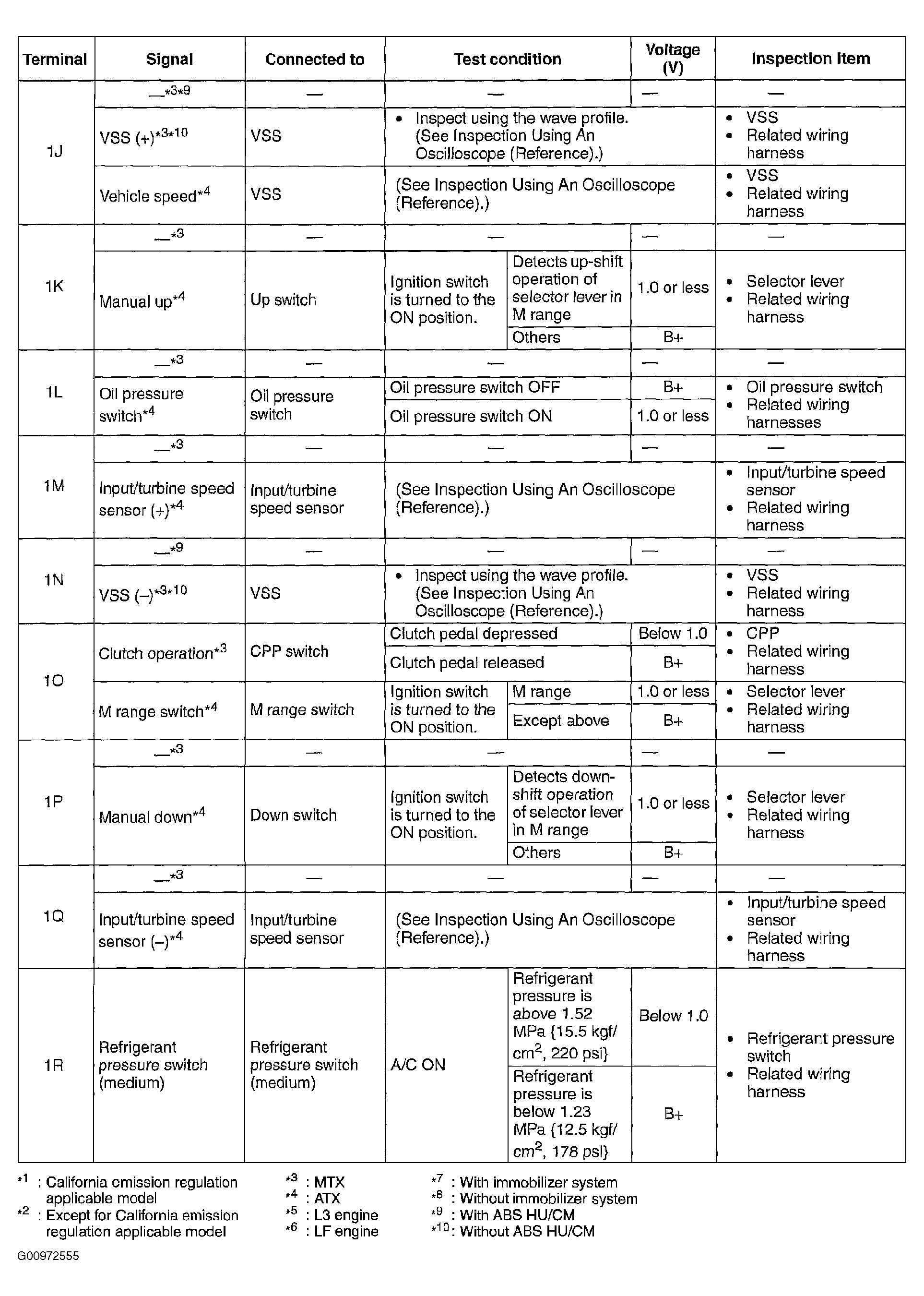

Fig 2: PCM Inspection & Test Index (2 Of 8)

G00972555

Courtesy of MAZDA MOTORS CORP.

Fig 3: PCM Inspection & Test Index (3 Of 8)

G00972556

Courtesy of MAZDA MOTORS CORP.

Fig 4: PCM Inspection & Test Index (4 Of 8)

G00972557

Courtesy of MAZDA MOTORS CORP.

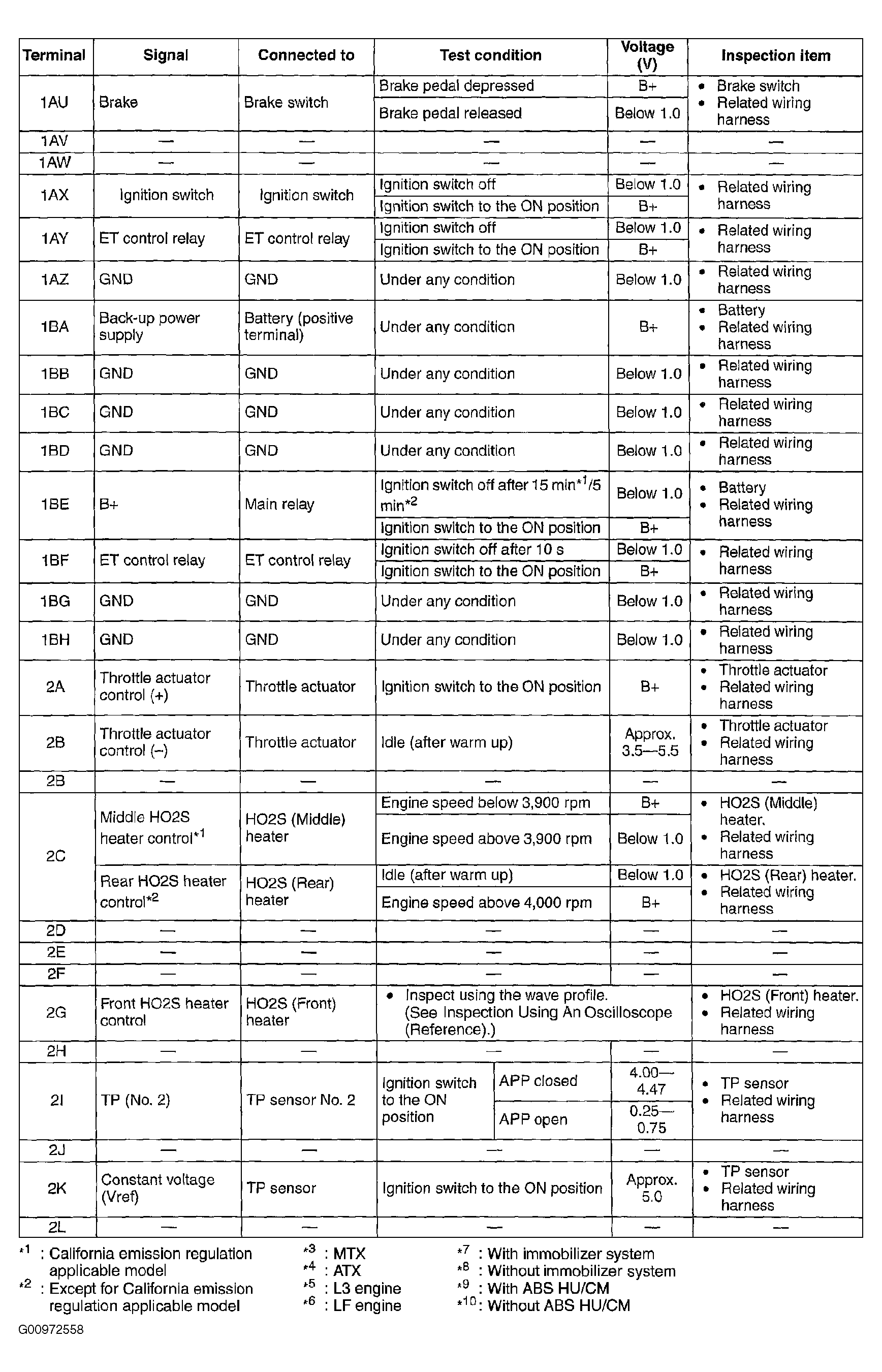

Fig 5: PCM Inspection & Test Index (5 Of 8)

G00972558

Courtesy of MAZDA MOTORS CORP.

Fig 6: PCM Inspection & Test Index (6 Of 8)

G00972559

Courtesy of MAZDA MOTORS CORP.

Fig 7: PCM Inspection & Test Index (7 Of 8)

G00972560

Courtesy of MAZDA MOTORS CORP.

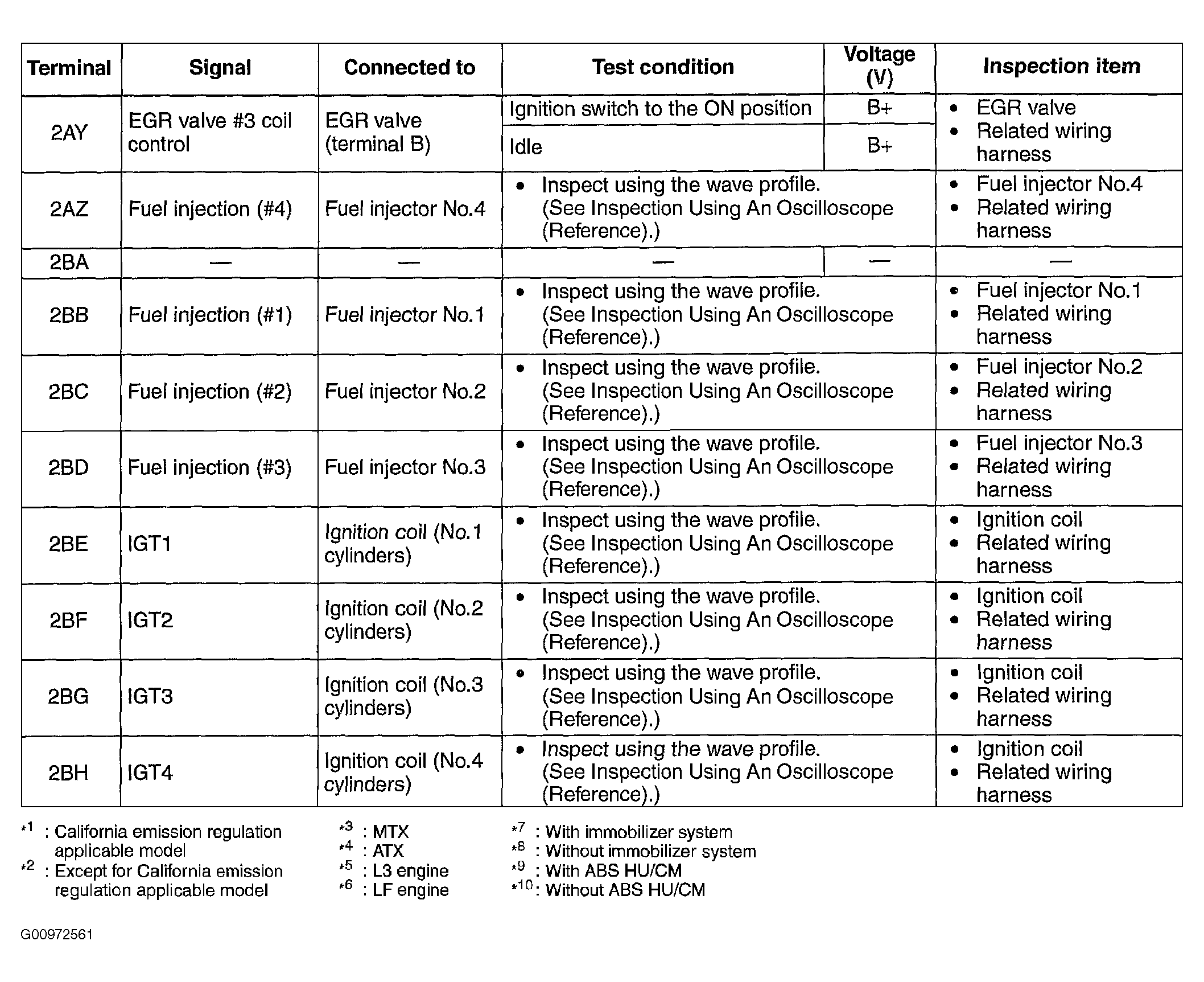

Fig 8: PCM Inspection & Test Index (8 Of 8)

G00972561

Courtesy of MAZDA MOTORS CORP.
