Resistance Inspection

Download the full database via torrent (~1.1 TB)

Verify that the throttle valve is at CTP.
Inspect accelerator cable free play. (See ACCELERATOR CABLE INSPECTION .)
Measure the resistance between TP sensor terminals A and C using an ohmmeter.
- If not as specified, replace the TP sensor.
- If as specified, but PID value or PCM terminal 89 voltage are out of specification, perform Circuit Open/Short Inspection .
  Specification

  3.2-4.8 kilohms

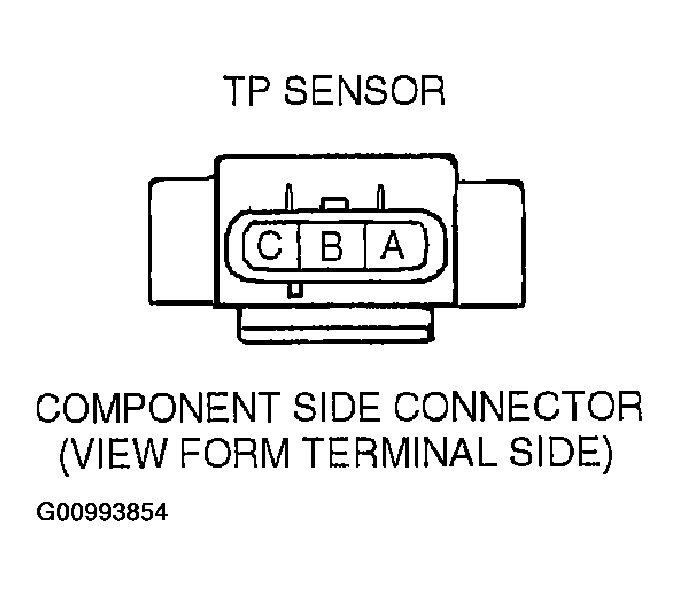

  Fig 1: Identifying TP Sensor Connector Terminals (View From Terminal Side)
  Courtesy of MAZDA MOTORS CORP.
