Circuit Open/Short Inspection: Notes

Download the full database via torrent (~1.1 TB)
  1. Disconnect the PCM connector.
  2. Inspect the following harness for an open or short wiring. (Continuity inspection)

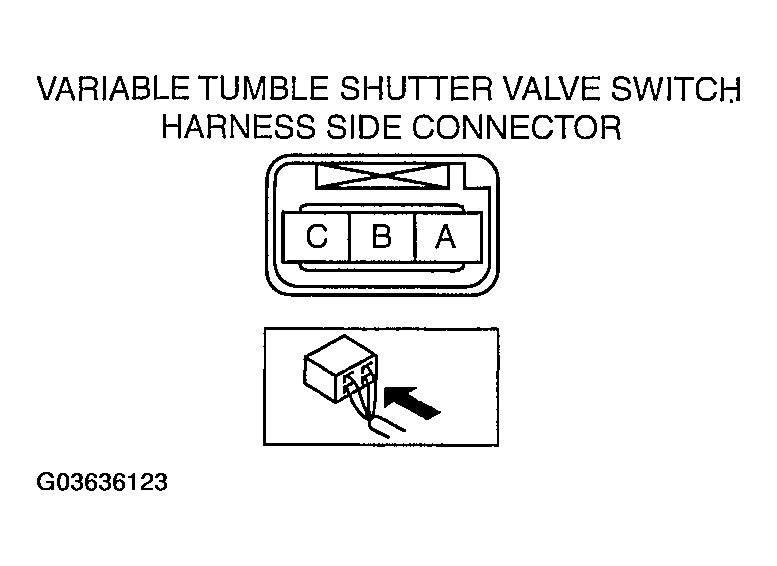

    Fig 1: Identifying Variable Tumble Shutter Valve Switch Harness Connector
    G03636123Courtesy of MAZDA MOTORS CORP.
