Generator Disassembly/Assembly

Download the full database via torrent (~1.1 TB)
CAUTION:
  • Melt the solder quickly, otherwise the diodes (rectifier) and regulator will be damaged by excessive heat.
  1. Disassemble in the order indicated in the table.
  2. Assemble in the reverse order of disassembly.

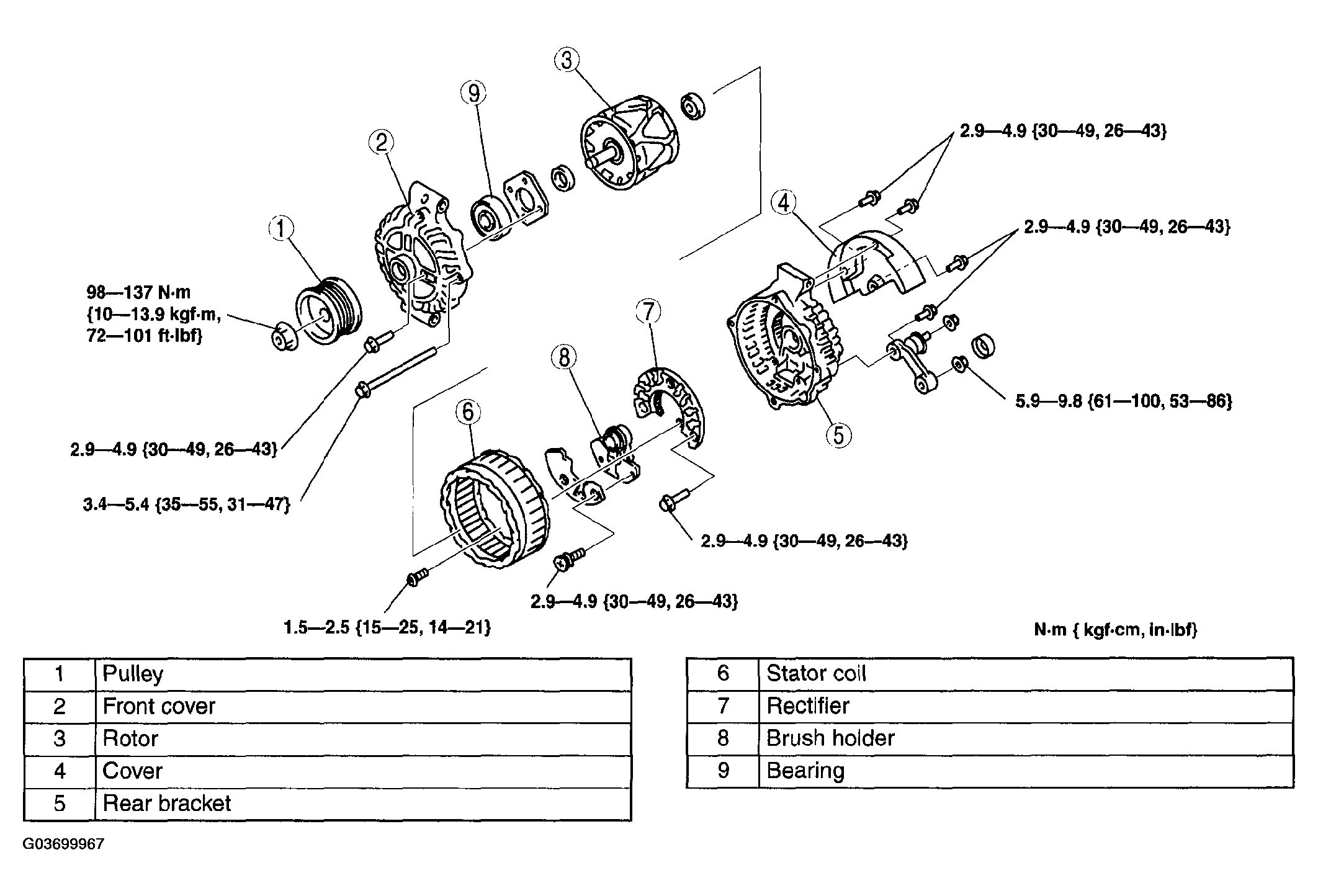

    Fig 1: Exploded View Of Generator
    G03699967Courtesy of MAZDA MOTORS CORP.
