Starter Disassembly/Assembly

Download the full database via torrent (~1.1 TB)
  1. Disassemble in the order indicated in the table.
  2. Assemble in the reverse order of disassembly.

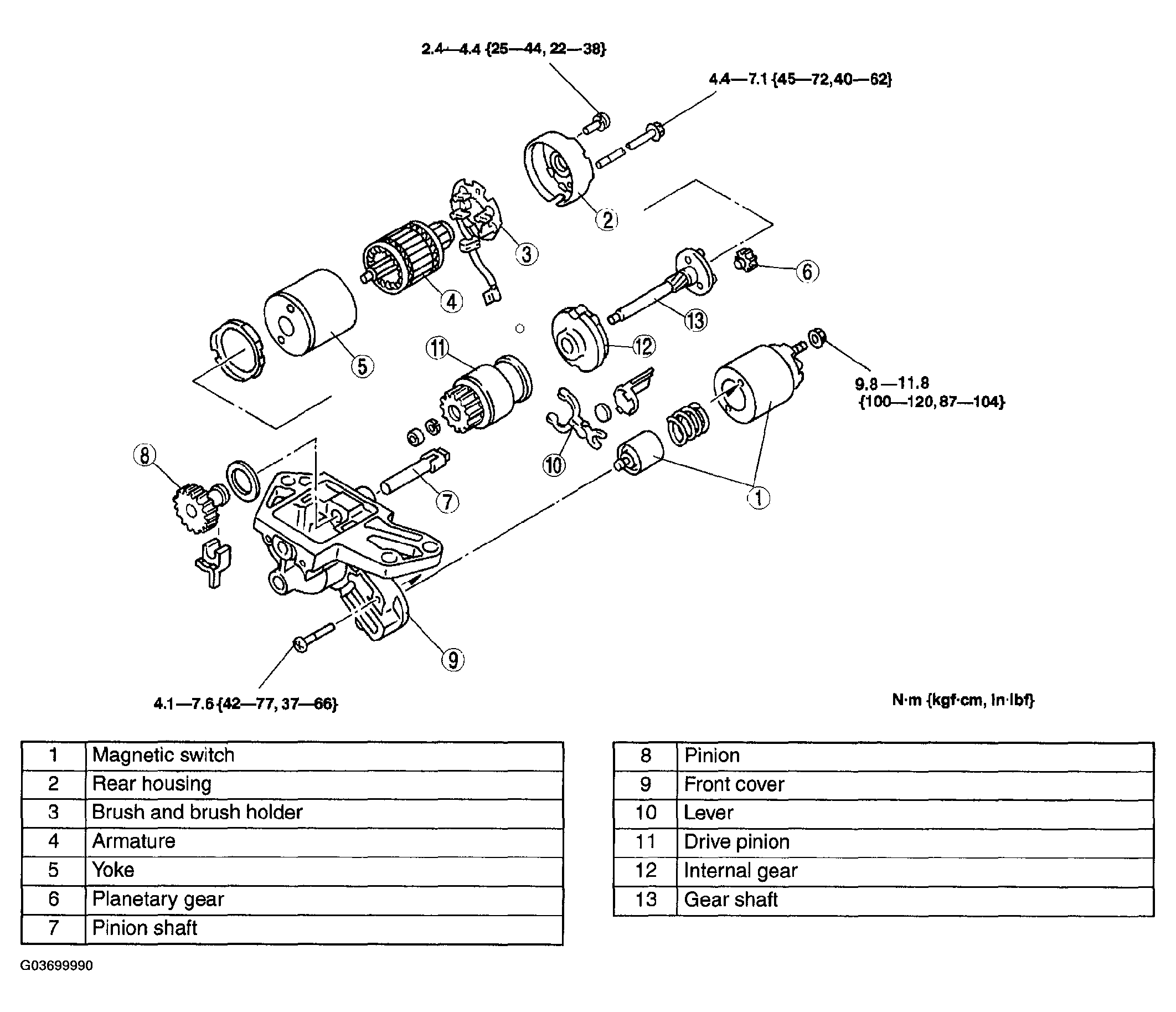

    Fig 1: Exploded View Of Starter
    G03699990Courtesy of MAZDA MOTORS CORP.
