Keyless Control Module Disassembly/Assembly: Notes

Download the full database via torrent (~1.1 TB)
  1. Disassemble in the order indicated in the table.

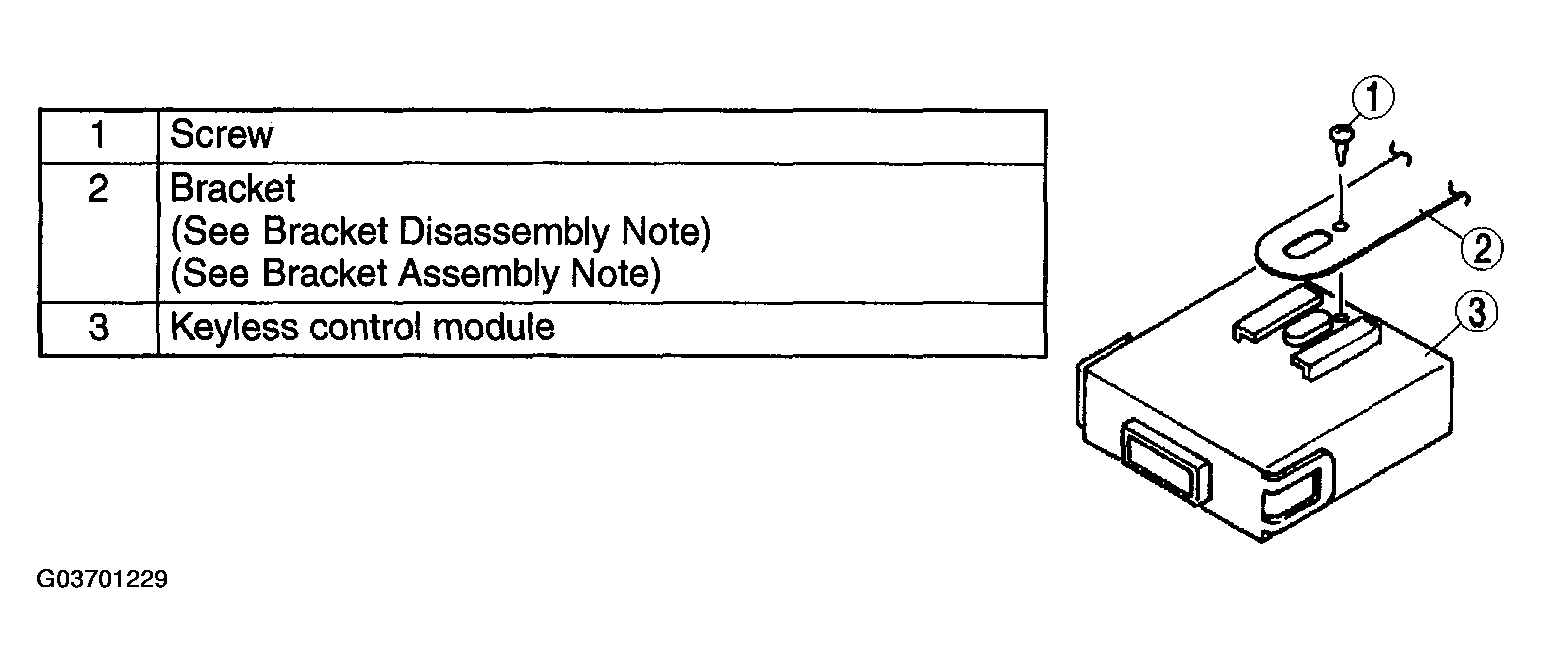

    Fig 1: Disassembling Keyless Control Module
    G03701229Courtesy of MAZDA MOTORS CORP.
  2. Assemble in the reverse order of disassembly.
