Control SYST Em Component Location Index
Control SYST Em Component Location Index
Download the full database via torrent (~1.1 TB)

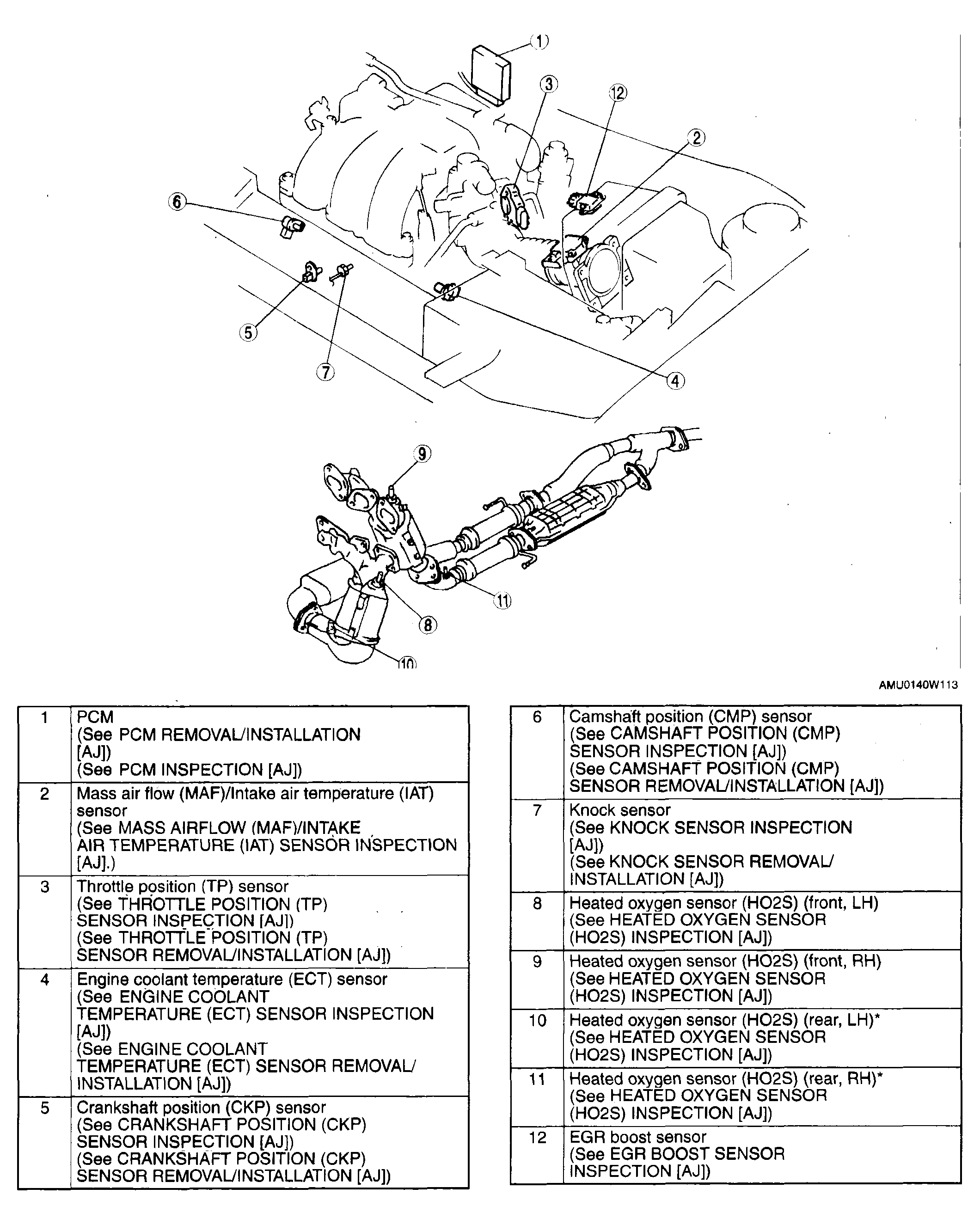

Fig 1: Identifying Control System Component Location
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
