MPV LX
>>
Repair and Diagnosis
>>
Engine Performance
>>
Engine Control Systems
>>
Control System Diagram
>>
With Rear HO2S Model
With Rear HO2S Model
Download the full database via torrent (~1.1 TB)

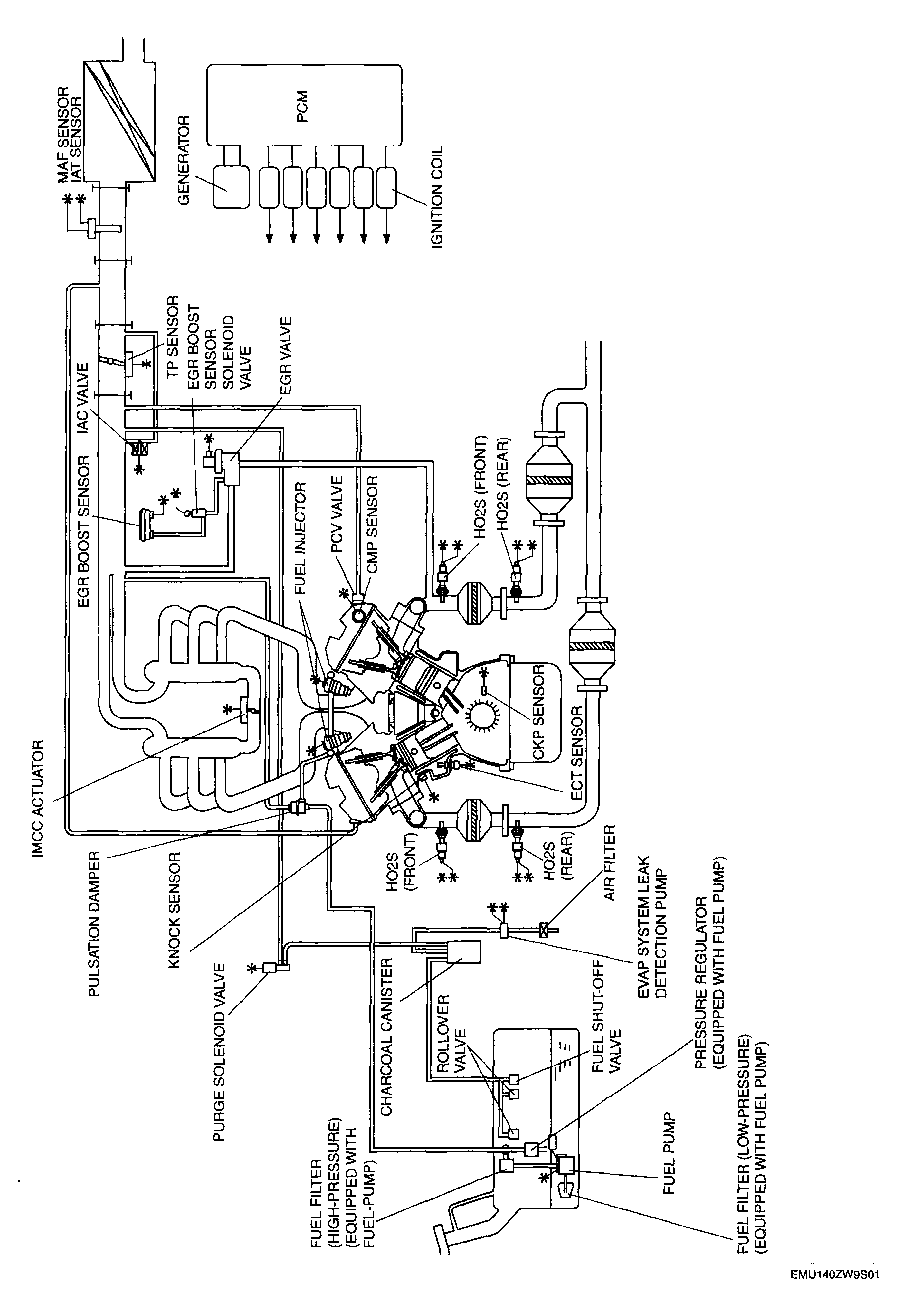

Fig 1: Control System Diagram - With Rear HO2S Model
Courtesy of MAZDA MOTORS CORP.
