Total Toe-In Adjustment

Download the full database via torrent (~1.1 TB)
Total Toe-in Adjustment

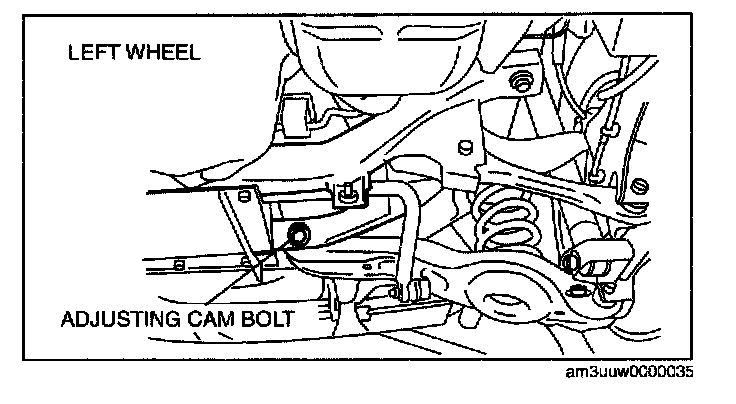

1. Loosen the installation nut of the adjusting cam bolt.
2. Rotate the adjusting cam bolt in either direction to adjust the camber.





3. Tighten the nut.

Tightening torque 80.0 - 100.0 N-m (8.16 - 10.19 kgf-m, 59.01 - 73.75 ft-lbf)
