Home >> Mazda >> 2007 >> 3 L4-2.3L >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> Timing Components >> Timing Cover

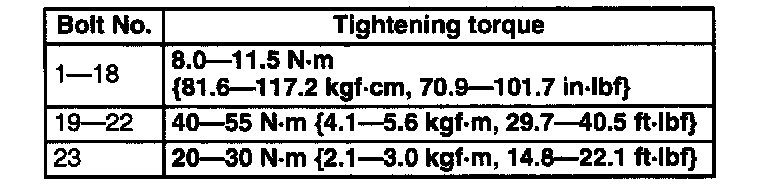

Timing Cover

Download the full database via torrent (~1.1 TB)

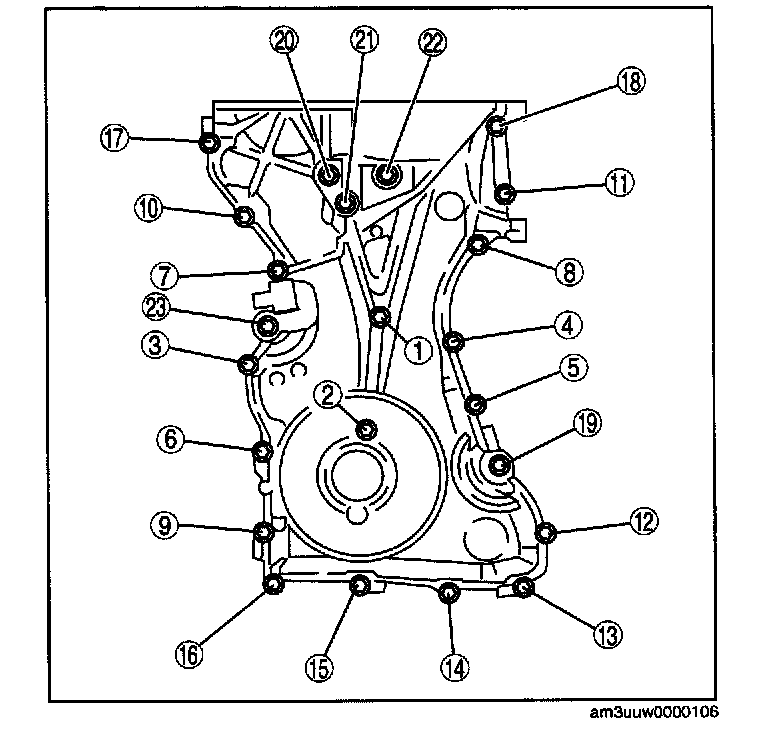

Engine Front Cover
