Keyless Entry Receiver: Service and Repair

Download the full database via torrent (~1.1 TB)
KEYLESS RECEIVER REMOVAL/INSTALLATION




1. Disconnect the negative battery cable.
2. Remove the glove-compartment.
3. Disconnect the keyless receiver module connector.

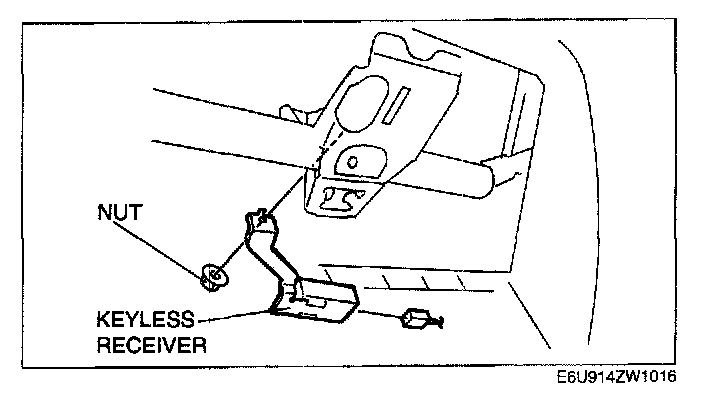

4. Remove the nut, then remove the keyless receiver.
5. Install in the reverse order of removal.
