Control System Wiring Diagram
Download the full database via torrent (~1.1 TB)

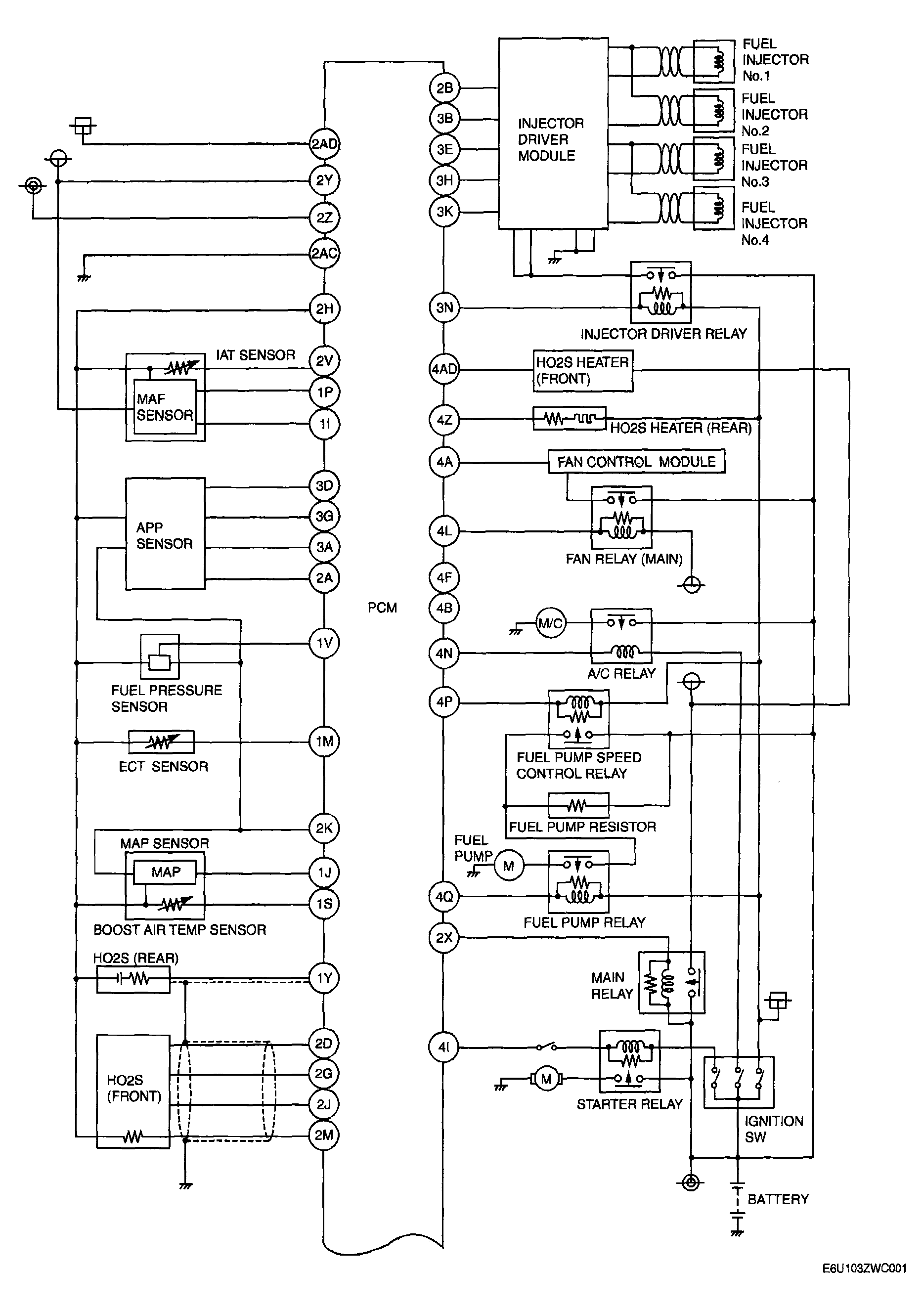

Fig 1: Control System Wiring Diagram [L3 With TC] (1 Of 2)
Courtesy of MAZDA MOTORS CORP.

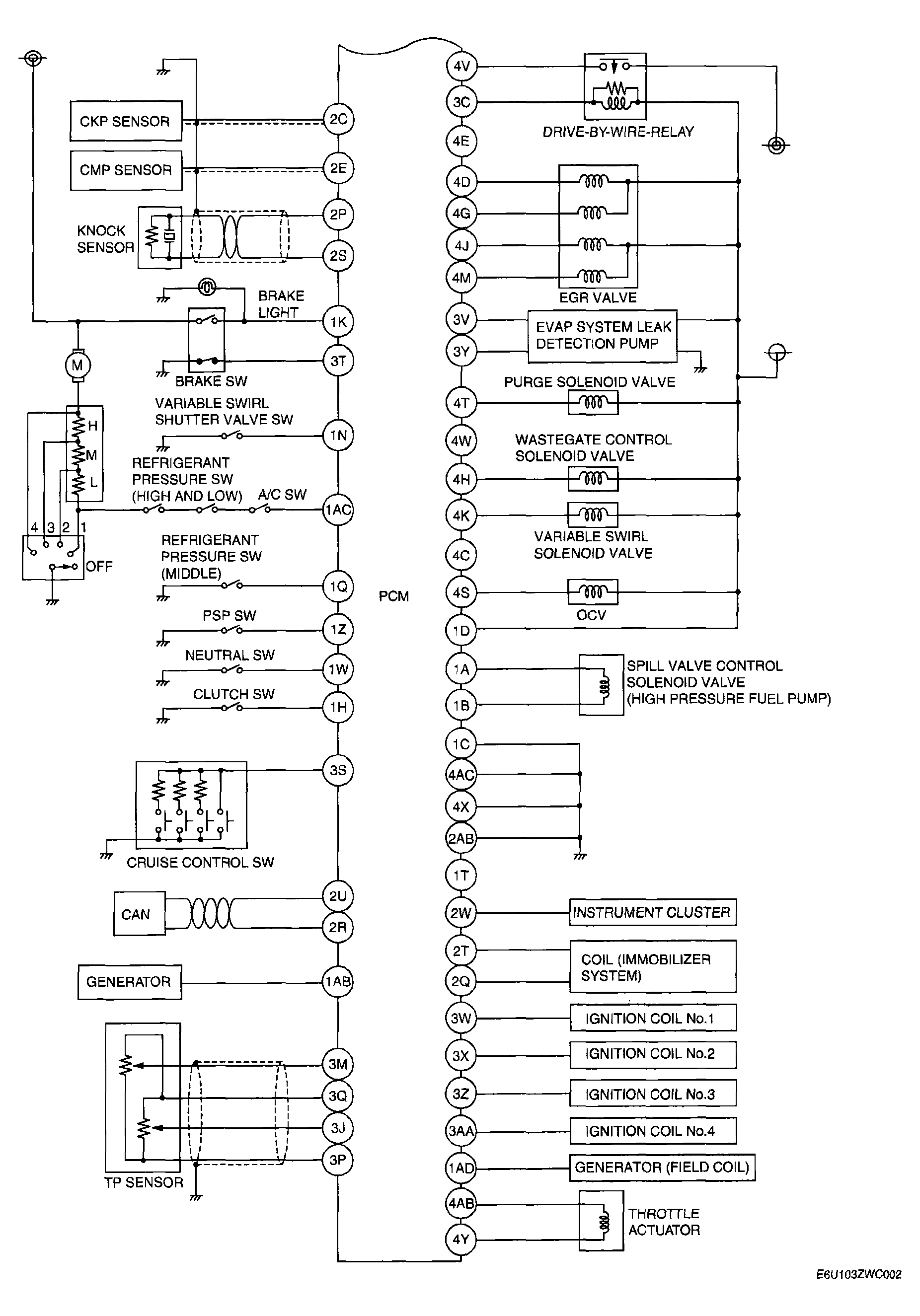

Fig 2: Control System Wiring Diagram [L3 With TC] (2 Of 2)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
