Injector Driver Module Removal/Installation

Download the full database via torrent (~1.1 TB)
  1. Disconnect the negative battery cable.
  2. Remove the battery and the battery tray.
  3. Remove in the order indicated in the table.
  4. Install in the reverse order of removal.

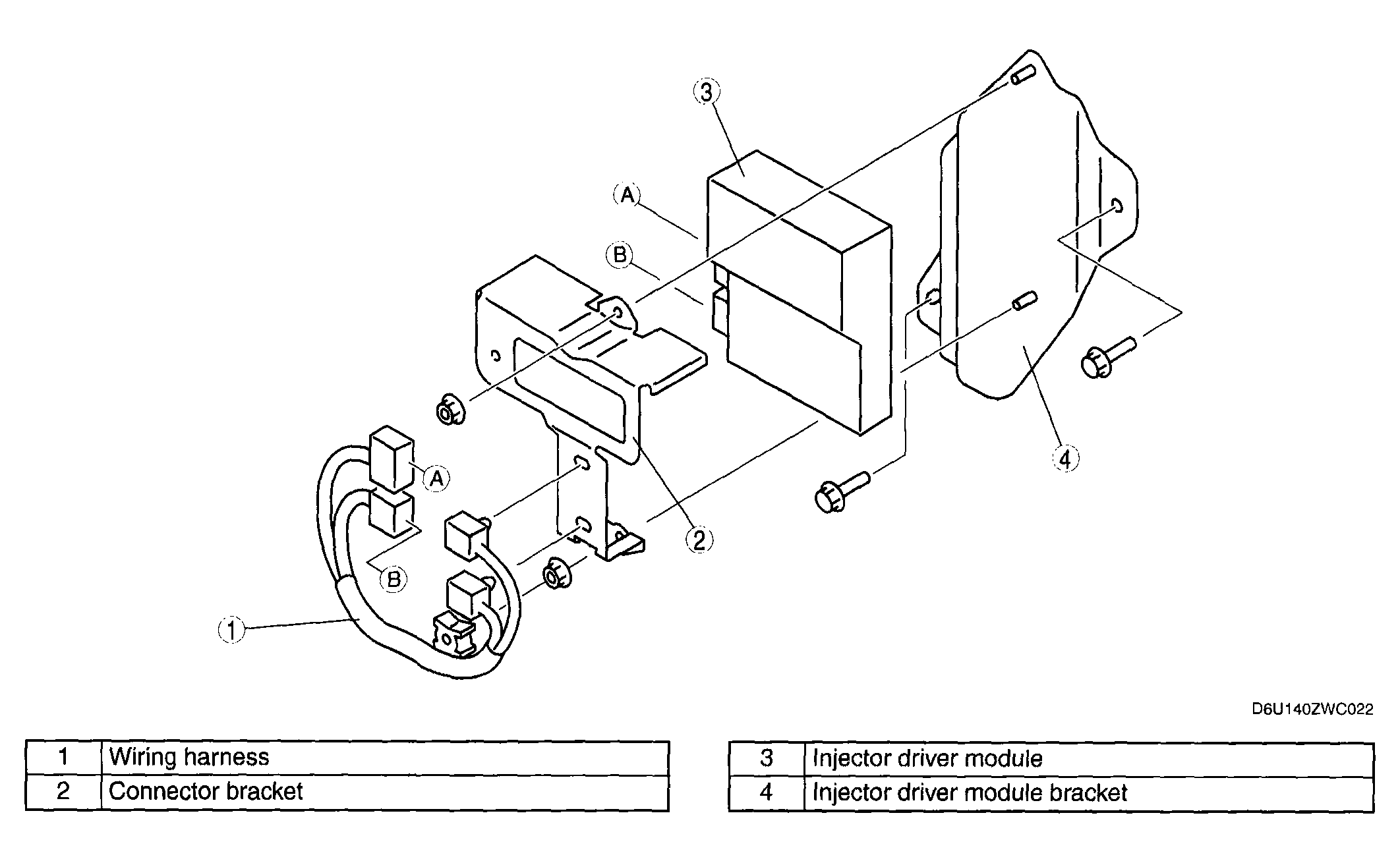

    Fig 1: Injector Driver Module Components
    G04325219Courtesy of MAZDA MOTORS CORP.
