Keyless Entry Receiver: Service and Repair

Download the full database via torrent (~1.1 TB)

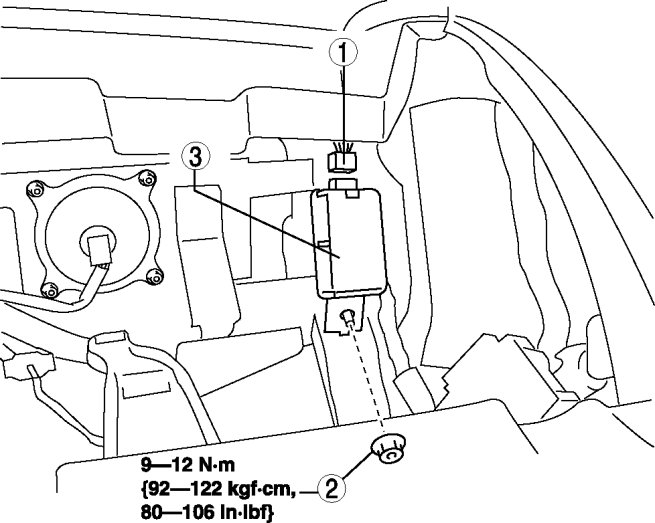

KEYLESS RECEIVER REMOVAL/INSTALLATION [KEYLESS ENTRY SYSTEM]

1. Disconnect the negative battery cable.

2. Remove the glove compartment. Service and Repair

3. Remove in the order indicated in the table.

4. Install in the reverse order of removal.
