Timing Cover
Download the full database via torrent (~1.1 TB)

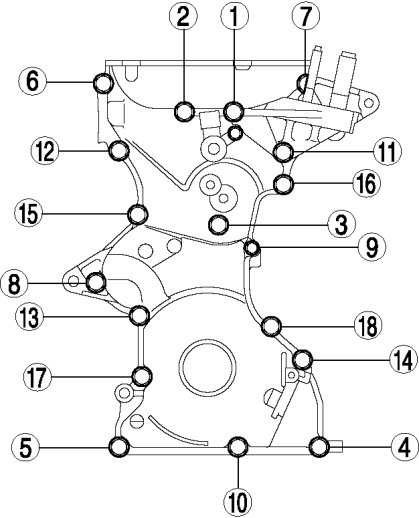

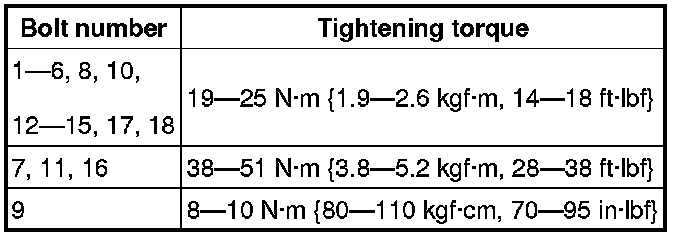

Tighten the engine front cover installation bolts in the order shown in the figure.
