Body Control Module: Description and Operation
Download the full database via torrent (~1.1 TB)

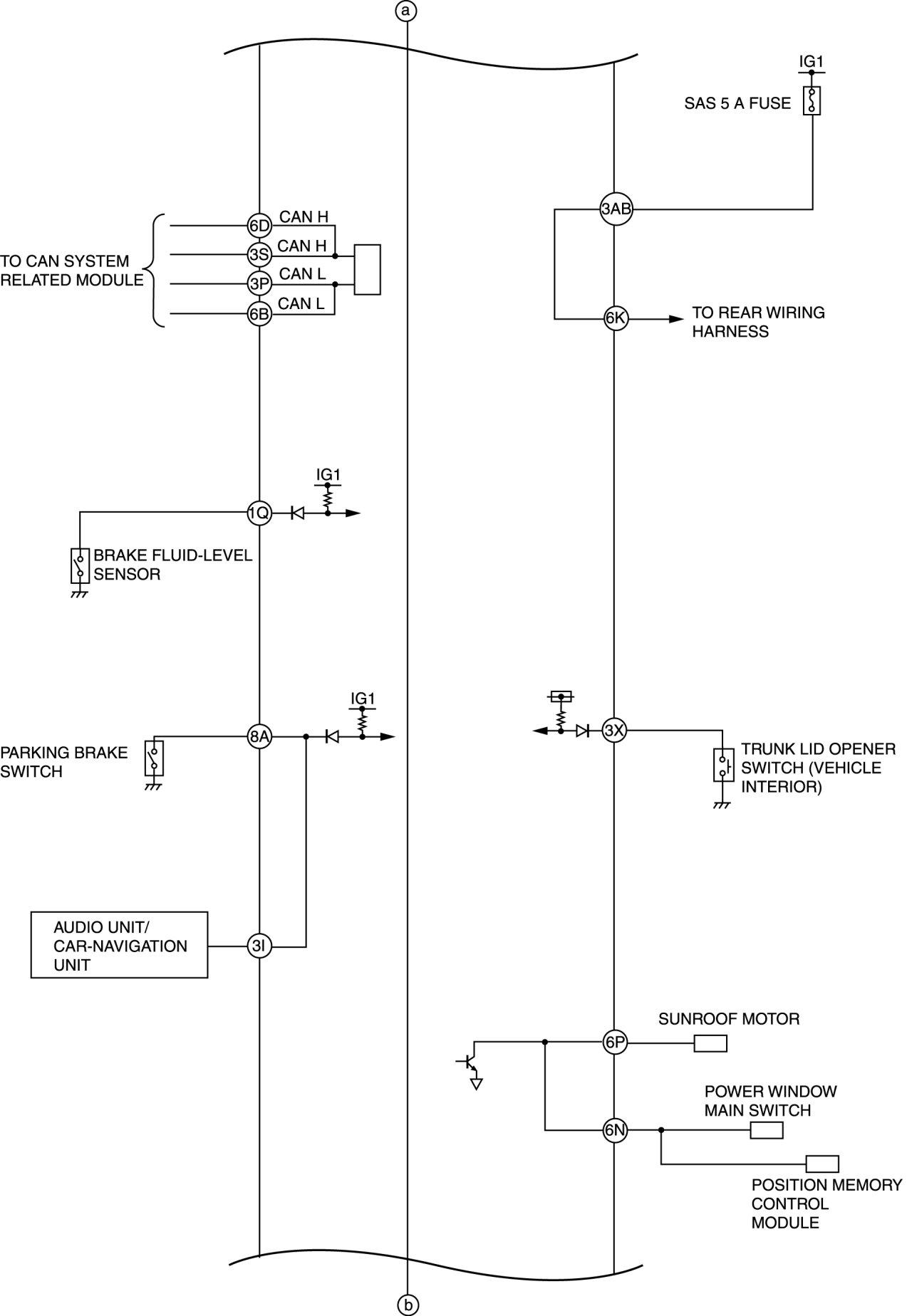

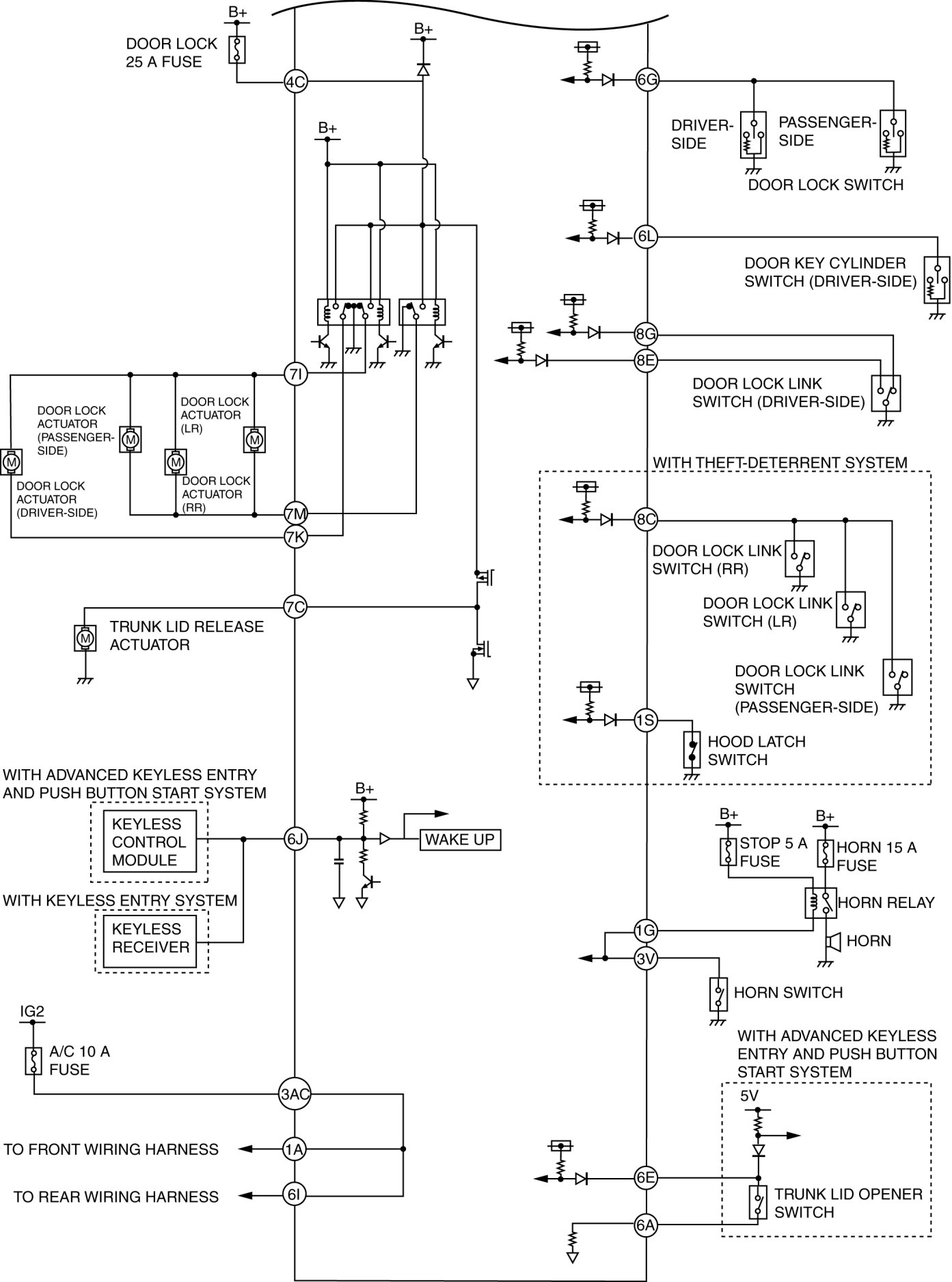

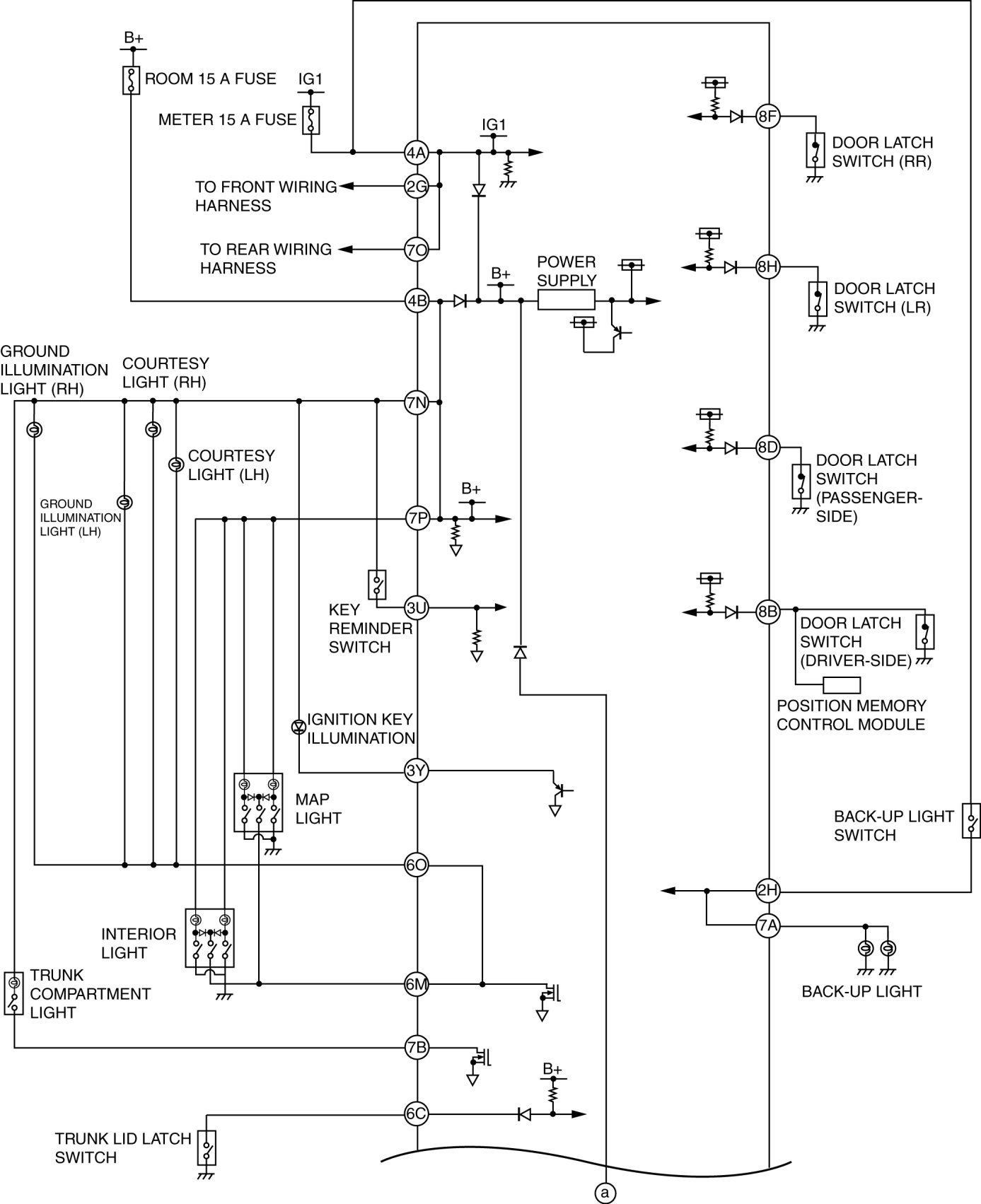

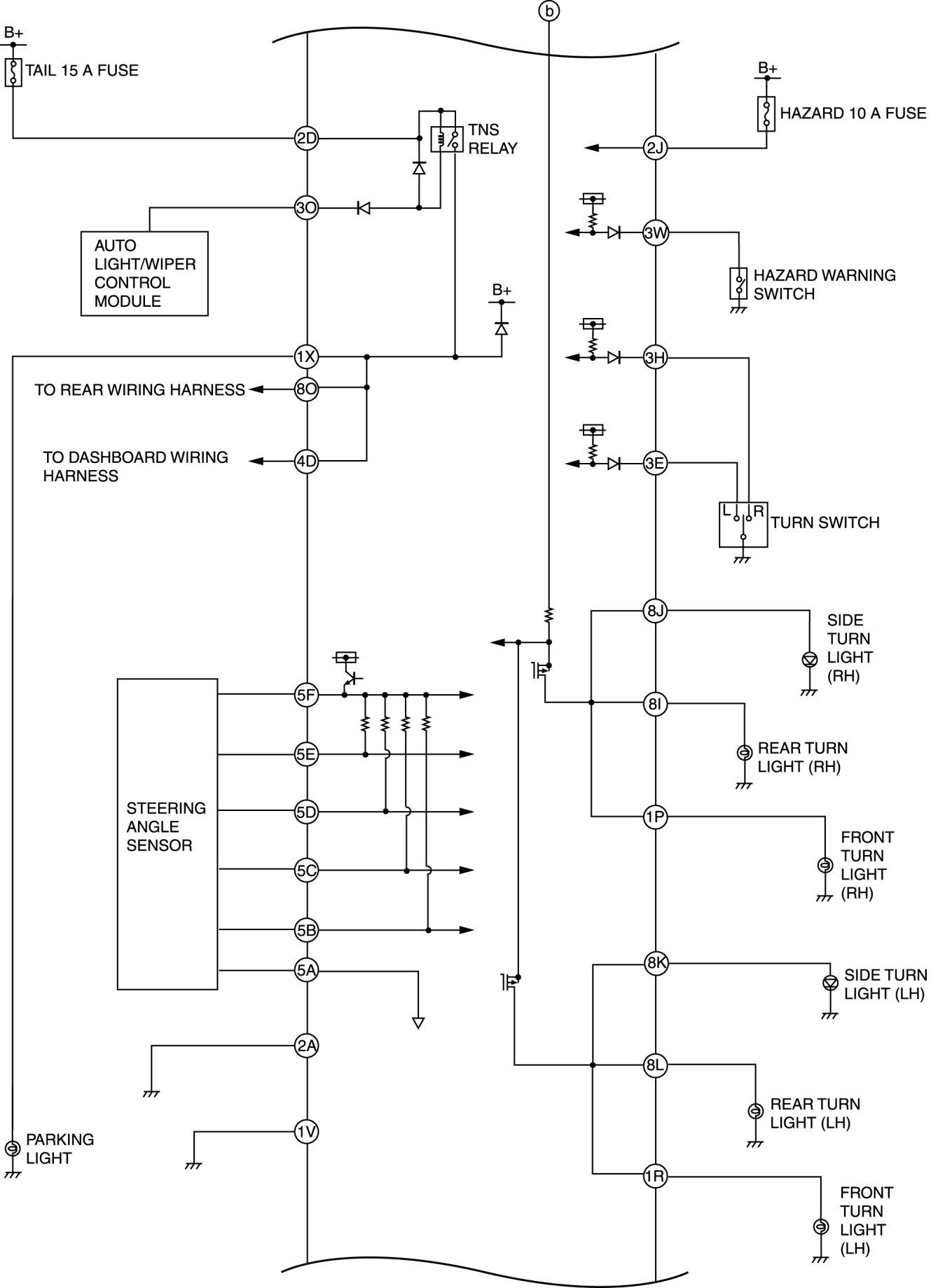

ON-BOARD DIAGNOSTIC WIRING DIAGRAM [
BCM
]
