Component Locations

Download the full database via torrent (~1.1 TB)

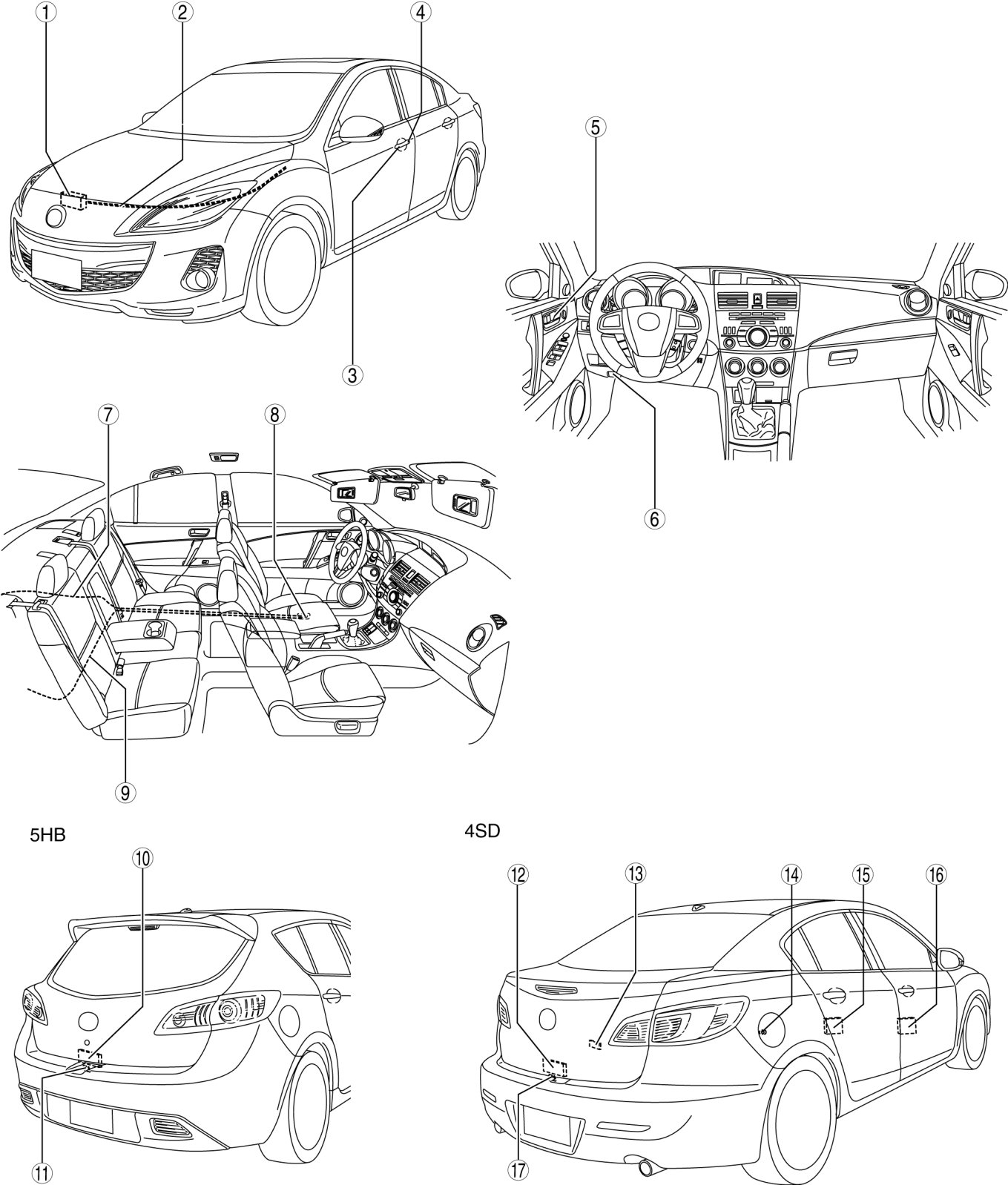

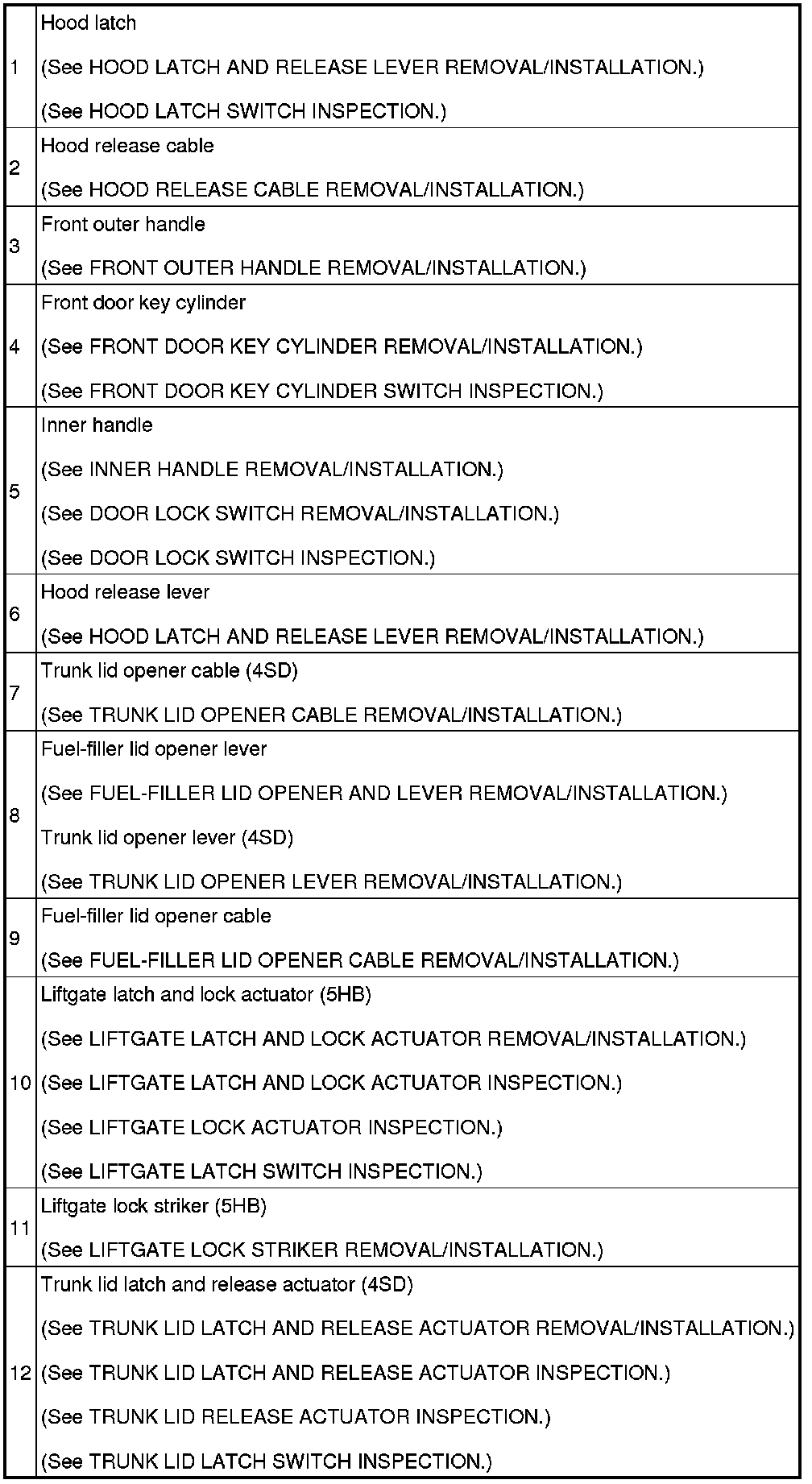

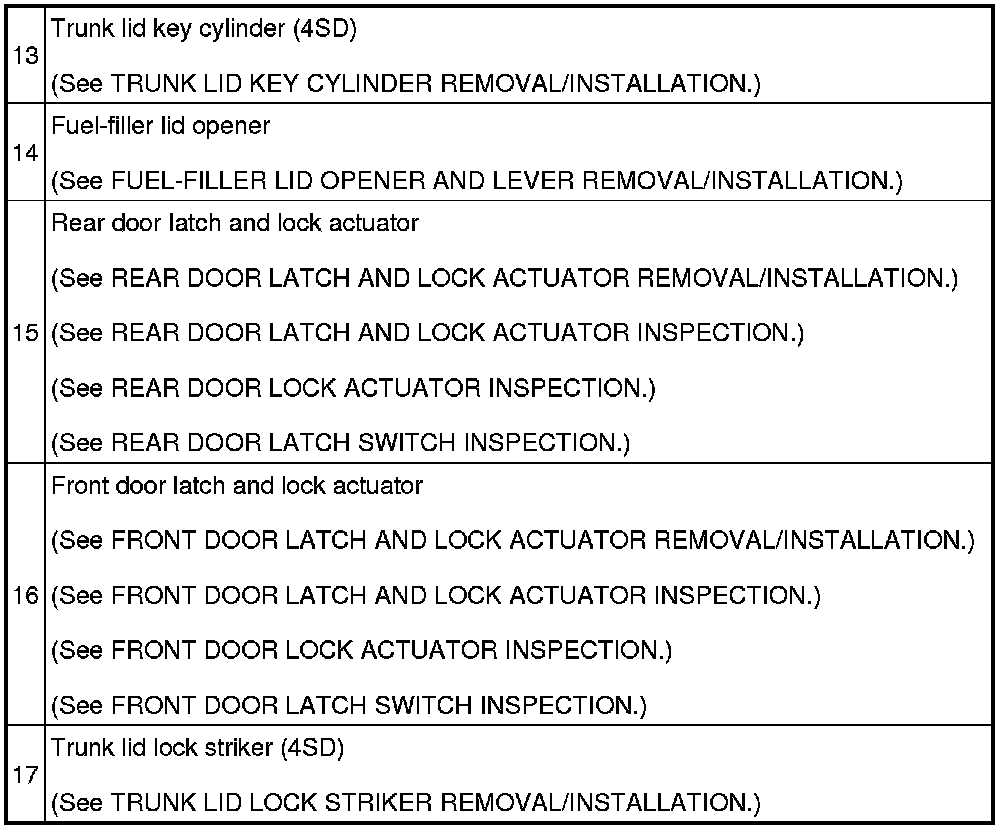

SECURITY AND LOCKS LOCATION INDEX

Locks and Openers

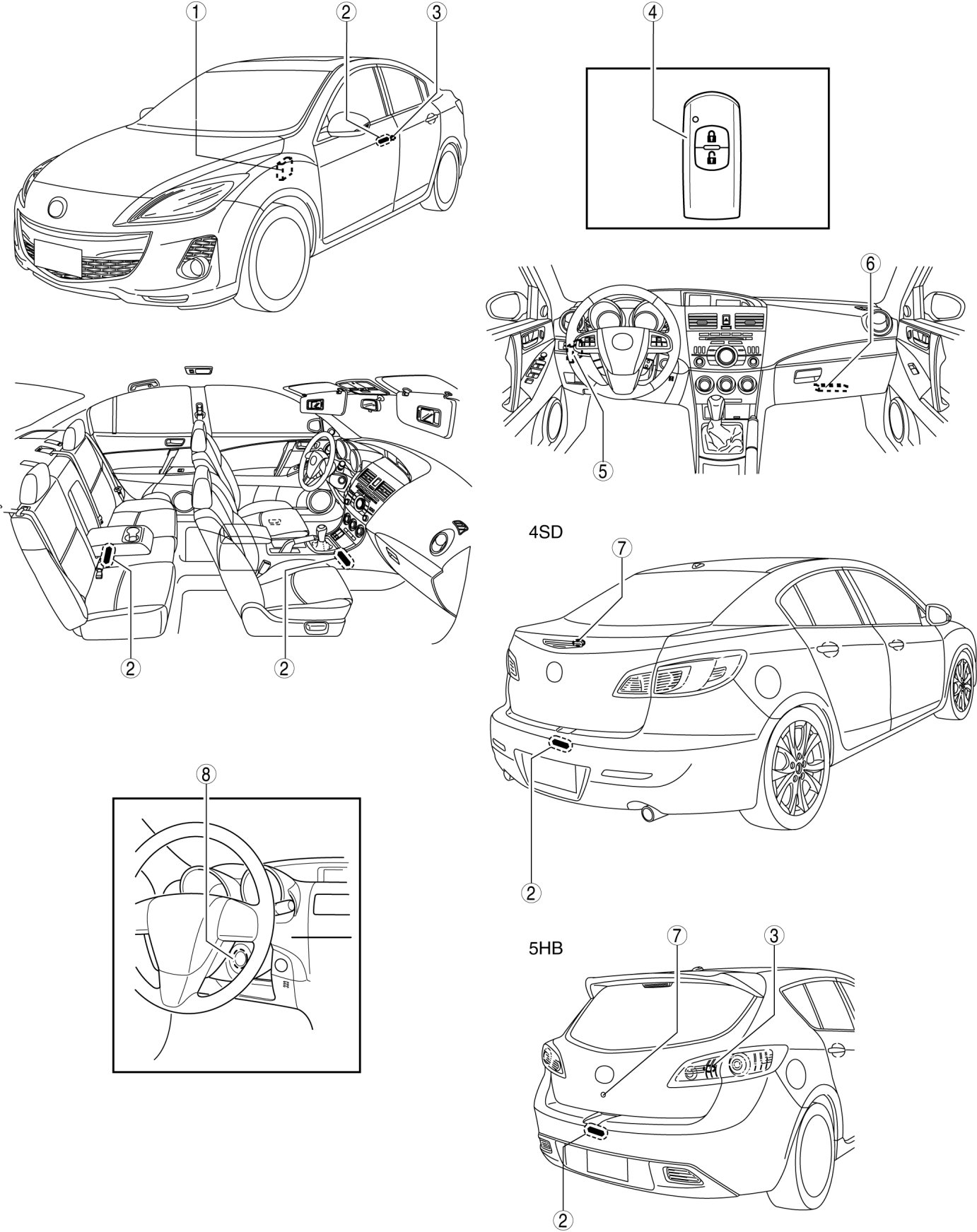

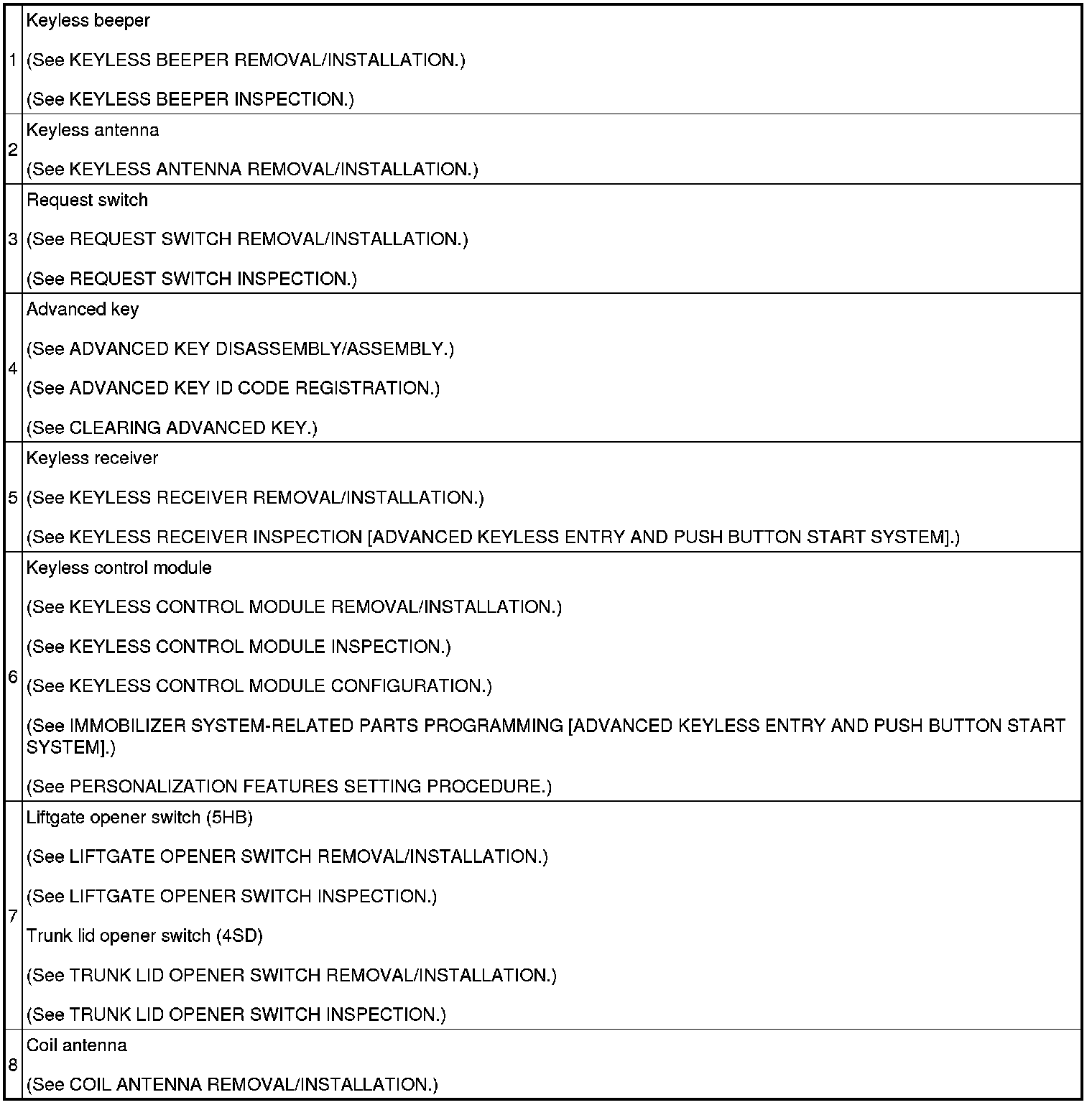

Advanced Keyless Entry And Push Button Start System/Immobilizer System

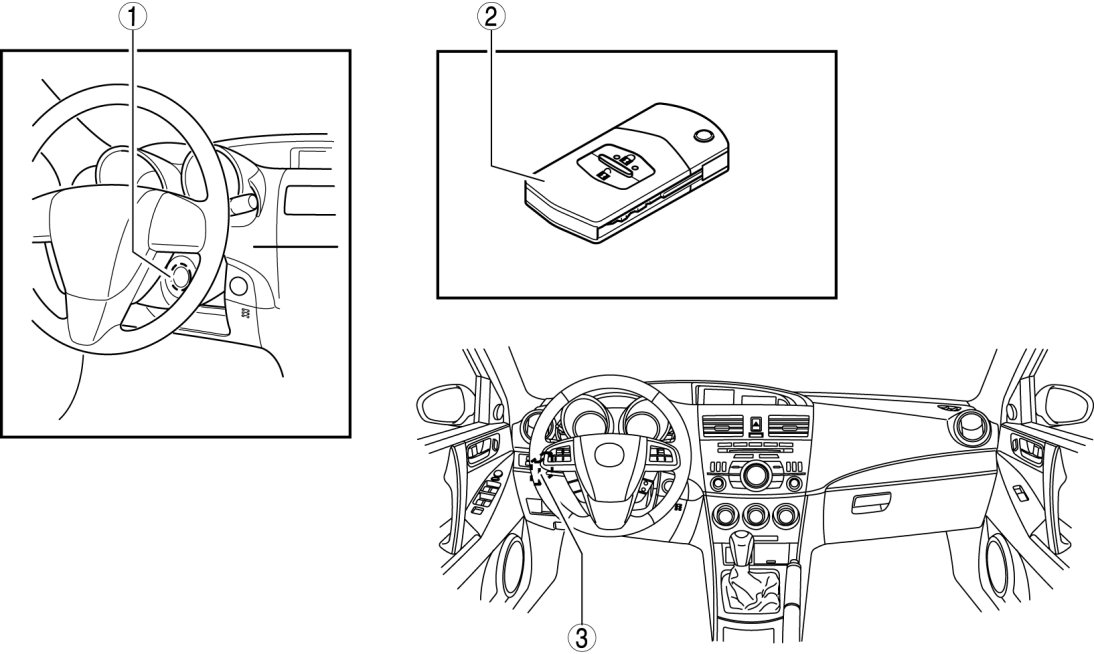

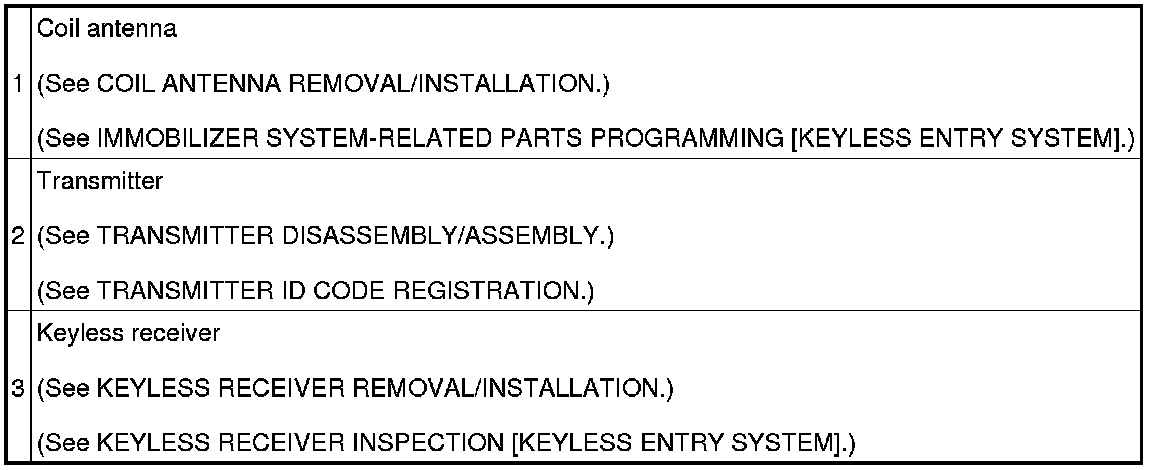

Keyless Entry System/Immobilizer System
