Control System Diagram
Download the full database via torrent (~1.1 TB)

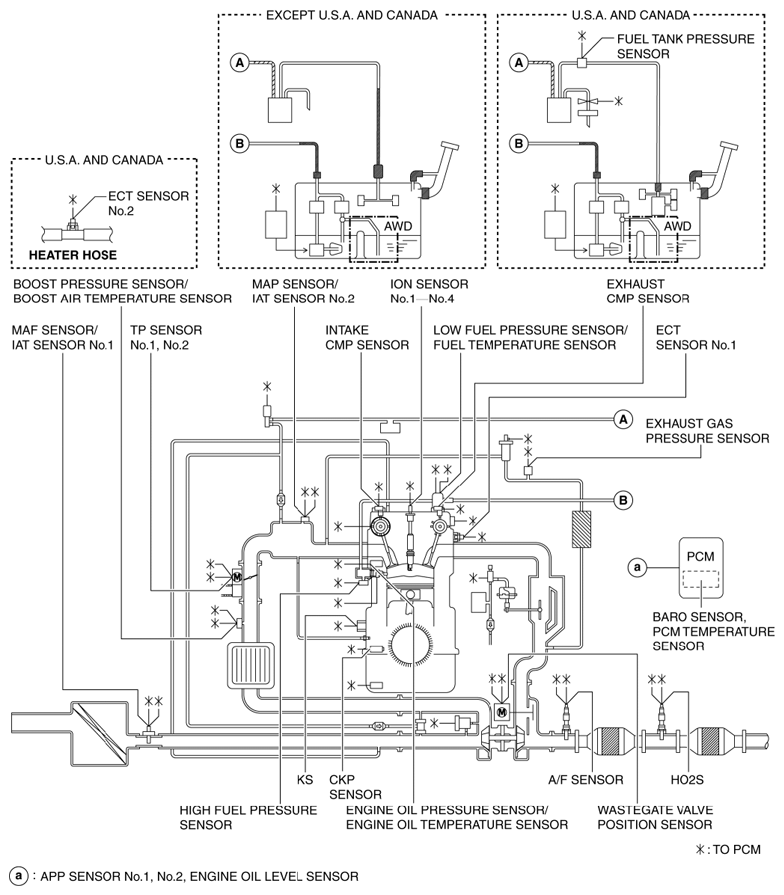

Fig 1: Control System Diagram (SKYACTIV-G 2.5T)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
