Intake CMP Signal
Download the full database via torrent (~1.1 TB)
Courtesy of MAZDA MOTORS CORP.

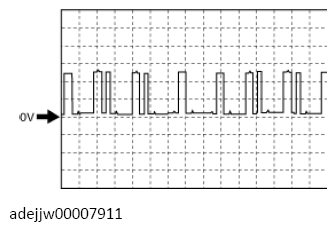

PCM terminals
1V (+)-body ground (-)
Oscilloscope setting
2 V/DIV (Y), 20 ms/DIV (X), DC range
Vehicle condition
Idle (after warm up)
Courtesy of MAZDA MOTORS CORP.
