Indicator Unit Removal/Installation
- Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
- Remove the sensor cover. (See SENSOR COVER REMOVAL/INSTALLATION .)
- Disconnect the connector.
- Move the indicator unit in the direction of the arrow shown in the figure and remove it from the sensor cover C.

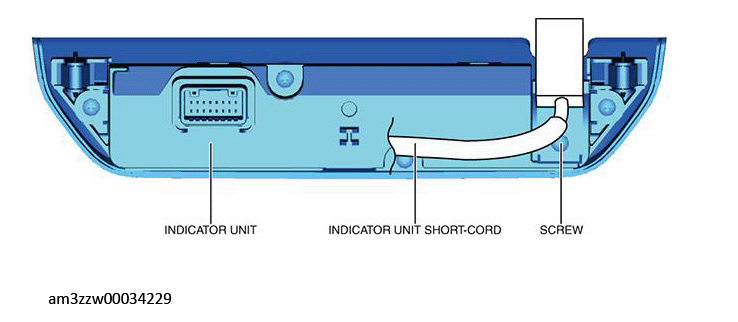

- Remove the screw.
- Remove the indicator unit short-cord.
- Install in the reverse order of removal.
