Transfer Bracket Installation Note

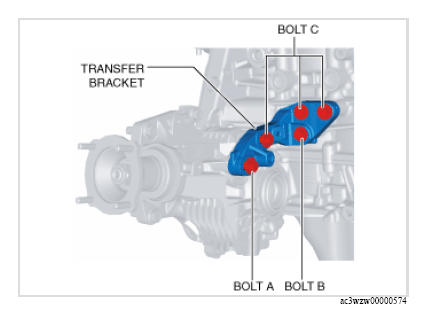

Install the transfer bracket to the transfer and temporarily tighten bolts A and B.

Courtesy of MAZDA MOTORS CORP.
Completely tighten bolts B and A in order.
Temporarily tighten bolt C.
Completely tighten bolt C.
Tightening torque

38-52 N.m {3.9-5.3 kgf.m, 29-38 ft.lbf}
