PCM Bracket Installation Note

Download the full database via torrent (~1.1 TB)
  1. Install the PCM to the PCM bracket.

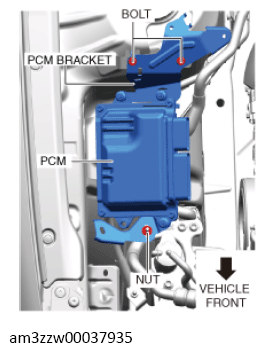

  2. Install the PCM bracket using the following procedure:
    G13732786Courtesy of MAZDA MOTORS CORP.
    1. Tighten the bolts.
    2. Tighten the nut.
