Headlamp Switch
Headlamp Switch
Download the full database via torrent (~1.1 TB)

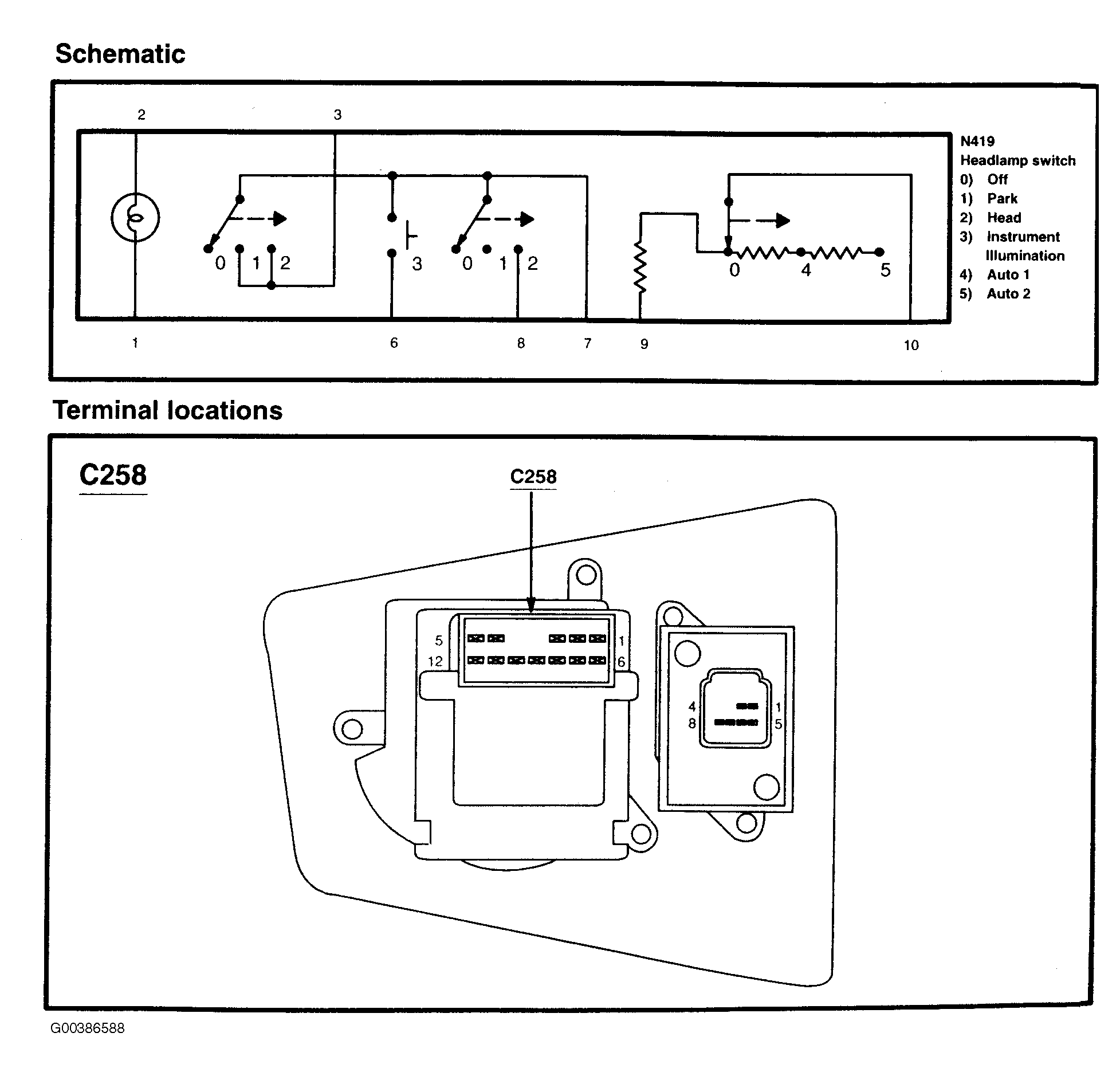

Fig 1: Testing Headlamp Switch (1 Of 2)
Courtesy of FORD MOTOR CO.

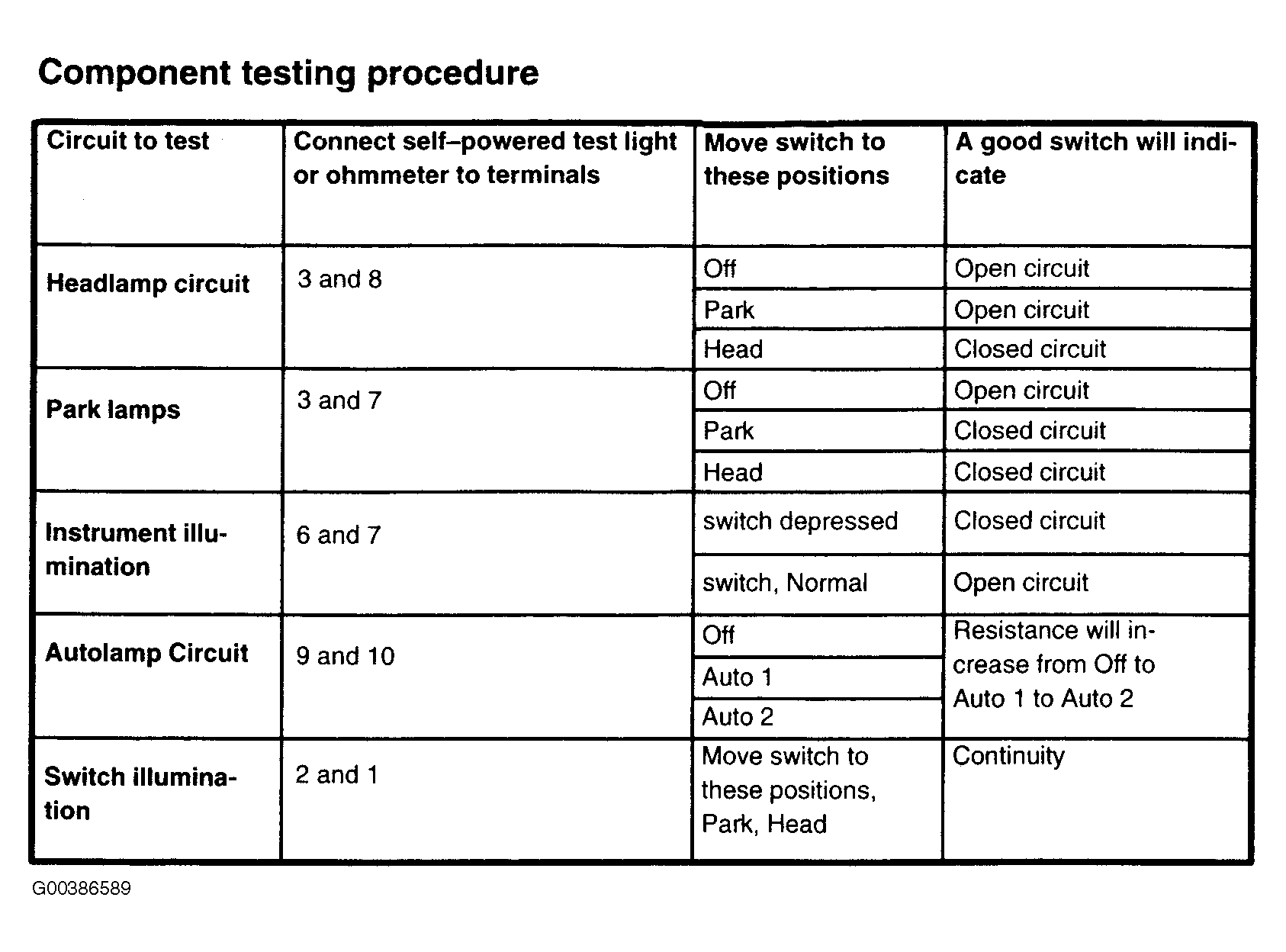

Fig 2: Testing Headlamp Switch (2 Of 2)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
