Component Testing
>>
MULTIFUNCTION Switch
MULTIFUNCTION Switch
Download the full database via torrent (~1.1 TB)

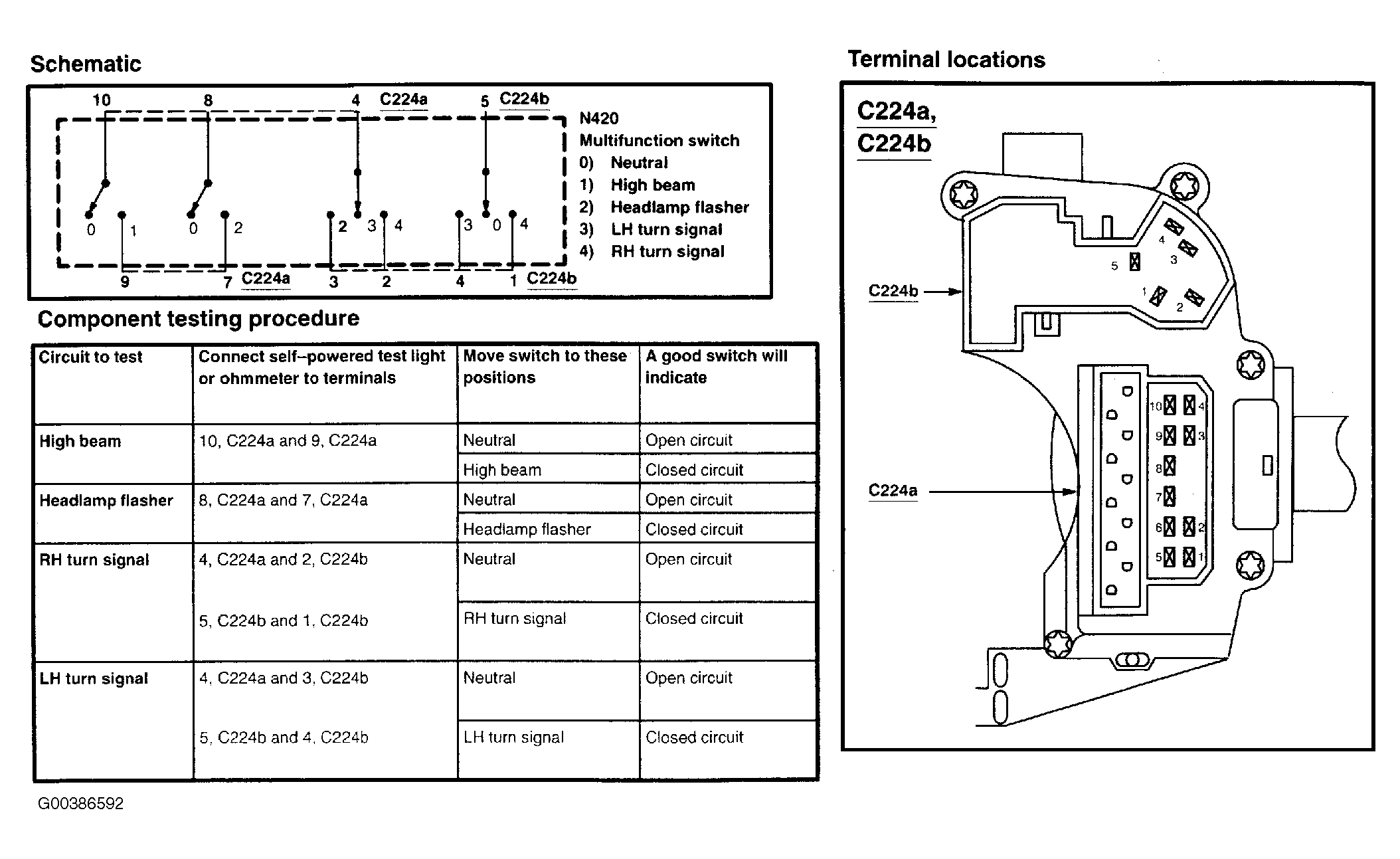

Fig 1: Testing Multifunction Switch (1 Of 2)
Courtesy of FORD MOTOR CO.

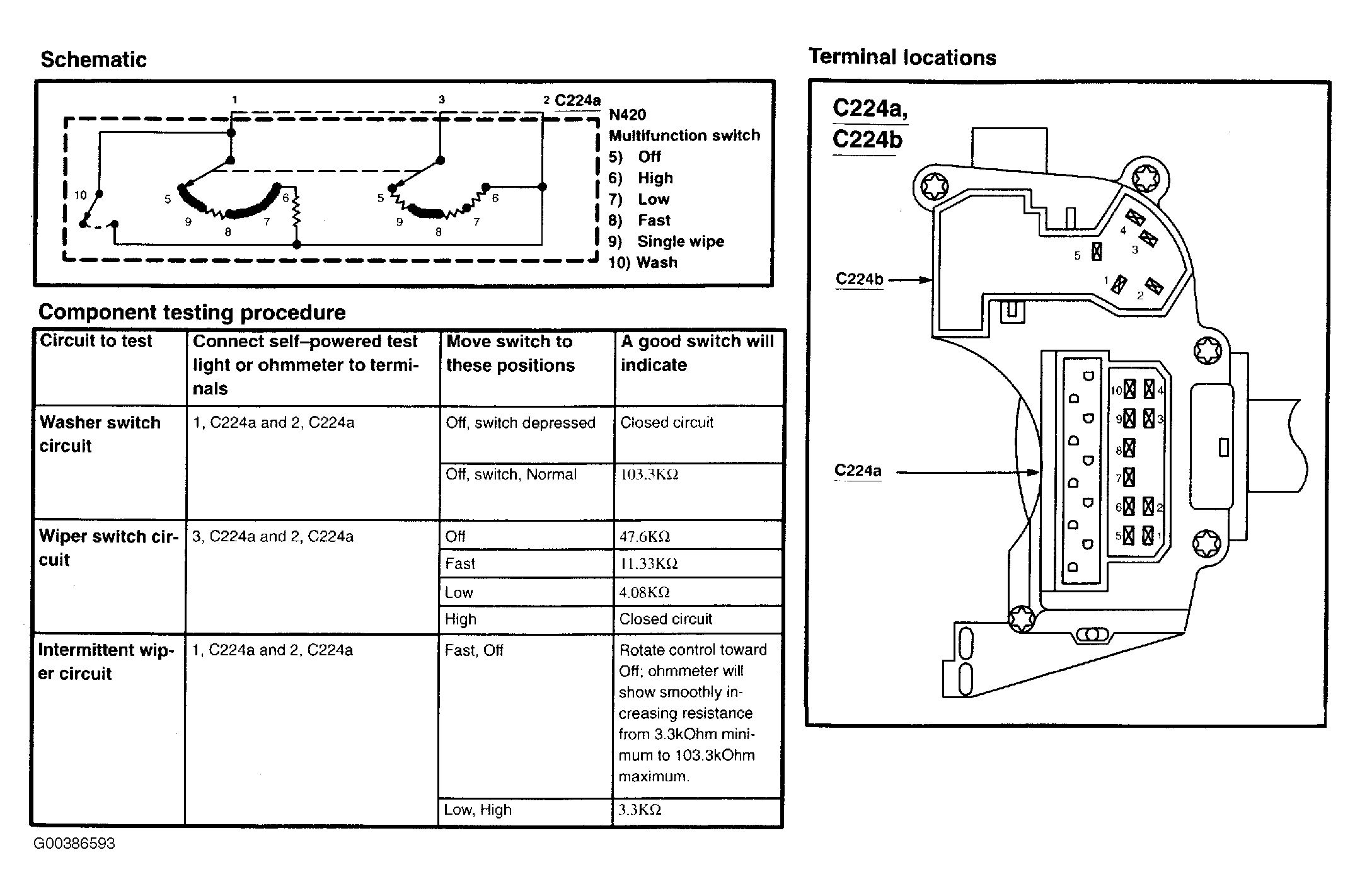

Fig 2: Testing Multifunction Switch (2 Of 2)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
