Power Feed To Relay Points Test

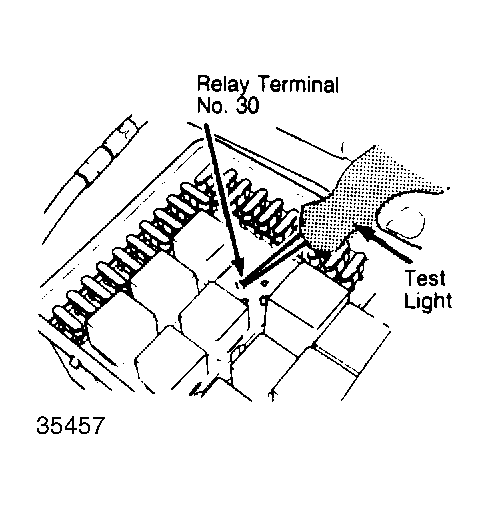

Remove fuel pump relay from circuit protection panel and connect test light from ground to relay terminal 30 in panel. If light is on, go to POWER FEED TO RELAY COIL TEST . If light is off, repair open in circuit. See Fig 1 .
